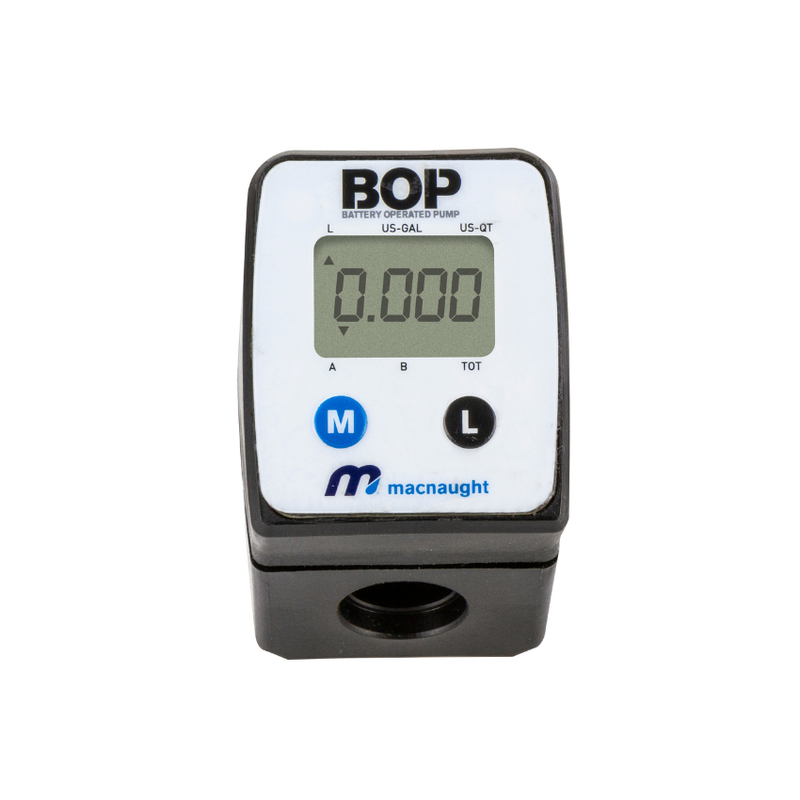

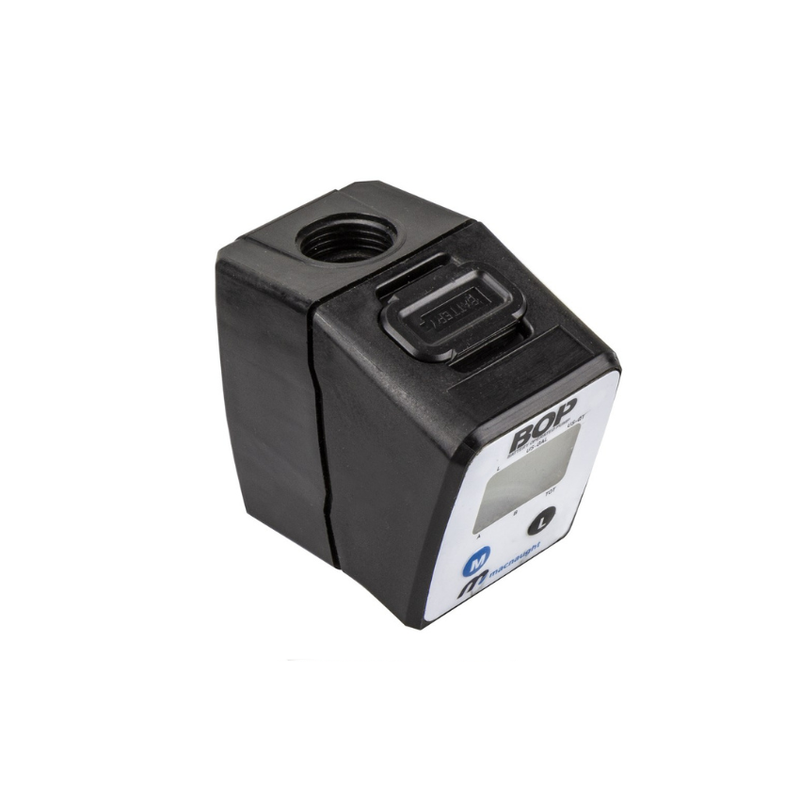

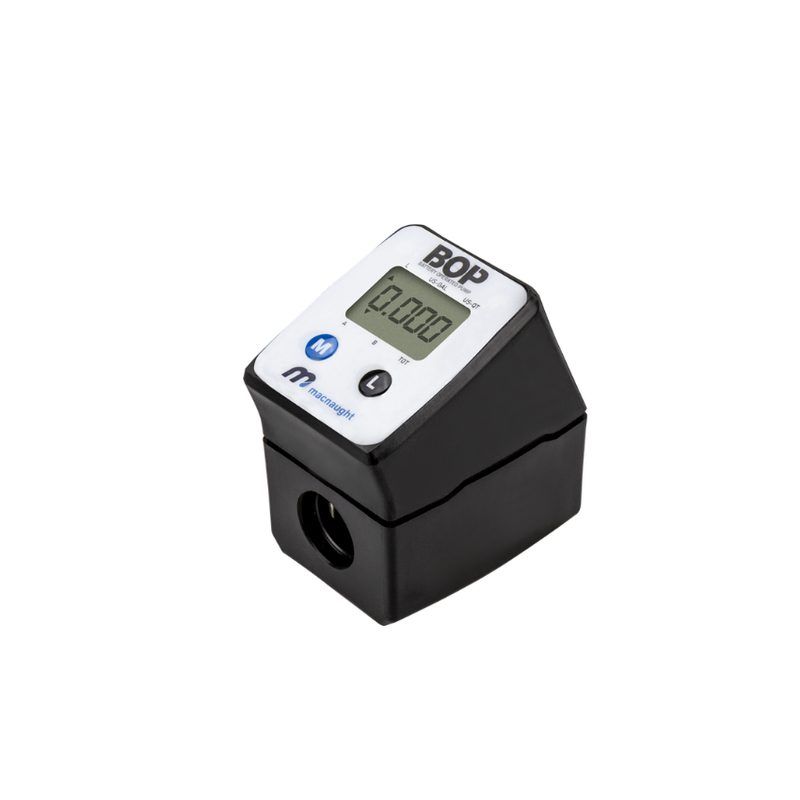

Macnaught BOP Inline Meter
The BOP Inline Electronic Meter is suitable for use with the BOP Dispense Gun, providing accurate flow measurement and batch tracking for oil dispensing applications. With a four digit display, resettable batch total, and back light function, it offers reliable and convenient metering for everyday workshop use.
Specifications
| Flow Range | Up to 10 L/min |
| Operating Temperature | -20°C to 70°C |
| Operating Pressure | 20 psi (MAX 60 psi) |
| Accuracy | ±2% of reading |
| IP Rating | IP65 |
| Inlet | 1/2" BSP connector supplied |
| Outlet | 1/2" BSPF |
| Power | 1 x CR2450 - 3V Lithium Coin Battery |
Features
| •Suits BOP Dispense Gun |
| •1/2" BSP connections |
| •Four digit display |
| •Resettable batch total |
| •Back light function |
| •IP65 rated for protection against dust and water in workshop environments |
Package Includes
| •BOP Inline Meter |
| •Fittings |
| •Battery |
| •Quick Start Guide |
The information contained in this data sheet is based on data considered to be accurate. No warranty is expressed or implied regarding the accuracy of this data. Product specifications and availability are subject to change without notice. Lube Control Pty Ltd accepts no responsibility for any loss or damage arising from the use of this information.
Technical Documents
IM_BOP_meter_instruction
Download PDF
PS_BOP_Inline_Meter
