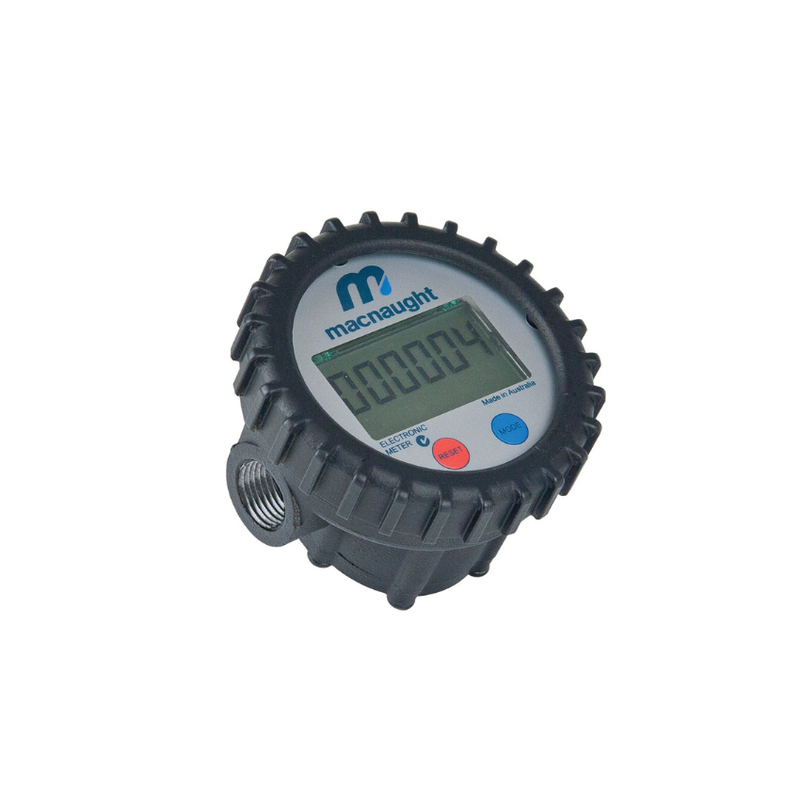

Macnaught Electronic Oil Meter 1/2" BSP
The in-line oval gear meter with electronic register is designed to measure lubricating oils with a flow rate of up to 30 L/min. Accurate reading to ±0.5% with maximum pressure to 6,900 kPa (1,000 psi). The large LC display shows both batch and cumulative totals, fitted with 1/2" BSP(F) ports for straightforward installation.
Specifications
| Display | Digital display showing both cumulative & push-button reset batch totals |
| Compatible Fluids | Oils up to SAE 140, automatic transmission fluid, engine oil, gear oil, hydraulic oil, coolant, diesel, kerosene |
| Flow Rate | 1 - 30 LPM |
| Accuracy | ±0.5% with maximum pressure to 6,900 kPa (1,000 psi) |
| Inlet/Outlet Ports | 1/2" BSP(F) |
| Totaliser | 6-digit digital display resettable batch totaliser, resettable and non-resettable totals |
Features
| •Large LC display shows both batch and cumulative totals |
| •Push-button reset batch totaliser alongside non-resettable cumulative total |
| •Suitable for a wide range of fluids including lubricating oils, automatic transmission fluid, engine oil, gear oil, hydraulic oil, coolant, diesel and kerosene |
| •Accurate flow measurement to ±0.5% of reading |
| •1/2" BSP(F) inlet/outlet ports for easy installation |
The information contained in this data sheet is based on data considered to be accurate. No warranty is expressed or implied regarding the accuracy of this data. Product specifications and availability are subject to change without notice. Lube Control Pty Ltd accepts no responsibility for any loss or damage arising from the use of this information.
