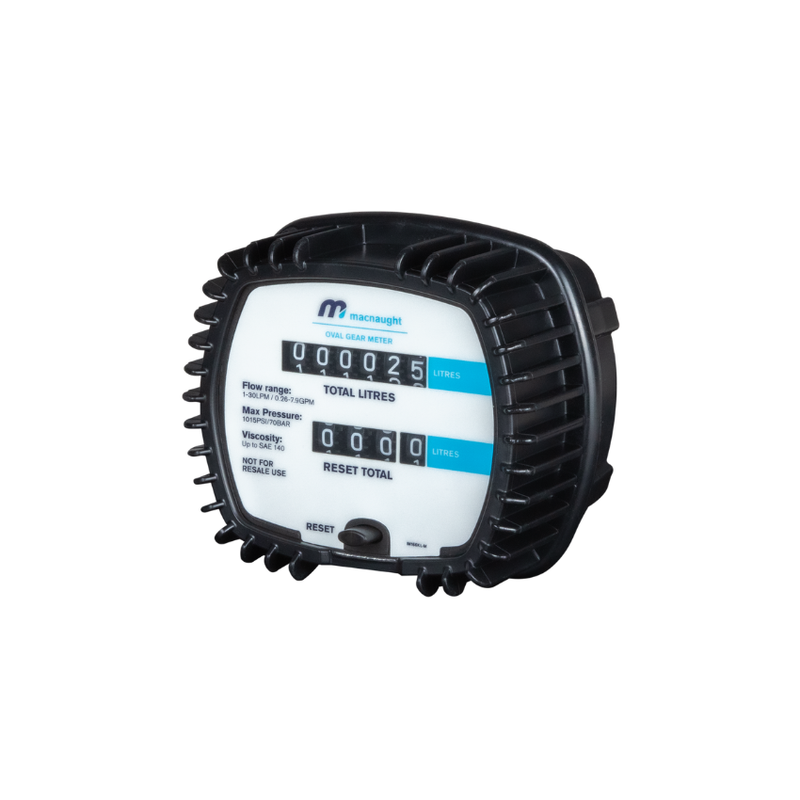

Macnaught Mechanical Oil Inline Meter 1/2" BSP
Incorporating oval gear technology, combined with heavy duty construction and a quality mechanical register display, this in-line meter range offers reliable and accurate fluid measurements for most oil applications. The mechanical register shows both cumulative and push button reset batch total. The meter is ideally suited for use in both inline meter applications or fitted to a hose end oil control gun.
Specifications
| Flow Range | 1-30 L/min |
| Maximum Pressure | 1000 psi / 6895 kPa / 69 bar |
| Minimum Temperature | -10°C |
| Maximum Temperature | 60°C |
| Meter / Register | Oval gear / Mechanical |
| Accuracy (Flow Rate) | ±1% (lube oils) |
| Inlet Port | 1/2" BSPT (F) |
| Outlet Port | 1/2" BSPT (F) |
| Compatible Fluids | Oils up to SAE140 |
| Accumulative Totaliser | 6 Digit Resettable Totaliser: 999.9 litre |
Features
| •Small versatile design, ideal for mobile use |
| •Requires no batteries |
| •Shock absorbing housing protection |
| •Oval gear mechanical meter, gears made of acetal resin |
| •Mechanical 6 digit totaliser with resettable 999.9 litre batch total |
| •Ready to use |
Package Includes
| •Mechanical oil meter |
| •Instruction manual |
The information contained in this data sheet is based on data considered to be accurate. No warranty is expressed or implied regarding the accuracy of this data. Product specifications and availability are subject to change without notice. Lube Control Pty Ltd accepts no responsibility for any loss or damage arising from the use of this information.
