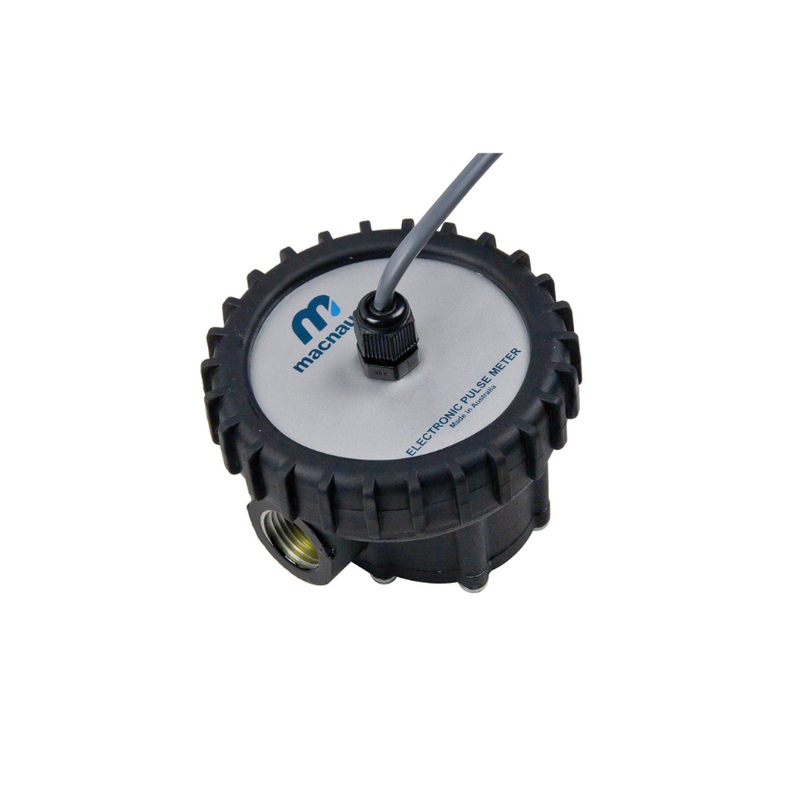

Macnaught Pulse Oil Meter 1/2" BSP
The IM012 in-line oval gear meter with pulse output only is designed to measure lubricating oils with a flow rate of up to 30 L/min. Accuracy is around ±0.5% of reading with a maximum pressure rating of 6,900 kPa (1,000 psi). A fly lead is included to allow connection to other devices, with 1/2" BSP(F) ports for straightforward installation.
Specifications
| Model | IM012 - Pulse Output Only |
| Compatible Fluids | Oils up to SAE 140, automatic transmission fluid, engine oil, gear oil, hydraulic oil, coolant, diesel, kerosene |
| Fly Lead | 1m fly lead included, either reed switch and/or hall effect sensor |
| Flow Range | 1 - 30 LPM |
| Accuracy | ±0.5% of reading |
| Maximum Pressure | 6,900 kPa (1,000 psi) |
| Inlet/Outlet Ports | 1/2" BSP(F) |
Features
| •Pulse output only for integration with other monitoring or control devices |
| •Suitable for a wide range of fluids including lubricating oils, automatic transmission fluid, engine oil, gear oil, hydraulic oil, coolant, diesel and kerosene |
| •1m fly lead included for straightforward connection to other devices |
| •Available with reed switch and/or hall effect sensor |
| •Accurate flow measurement to ±0.5% of reading |
| •1/2" BSP(F) inlet/outlet ports for easy installation |
The information contained in this data sheet is based on data considered to be accurate. No warranty is expressed or implied regarding the accuracy of this data. Product specifications and availability are subject to change without notice. Lube Control Pty Ltd accepts no responsibility for any loss or damage arising from the use of this information.
Technical Documents
im_im012p
