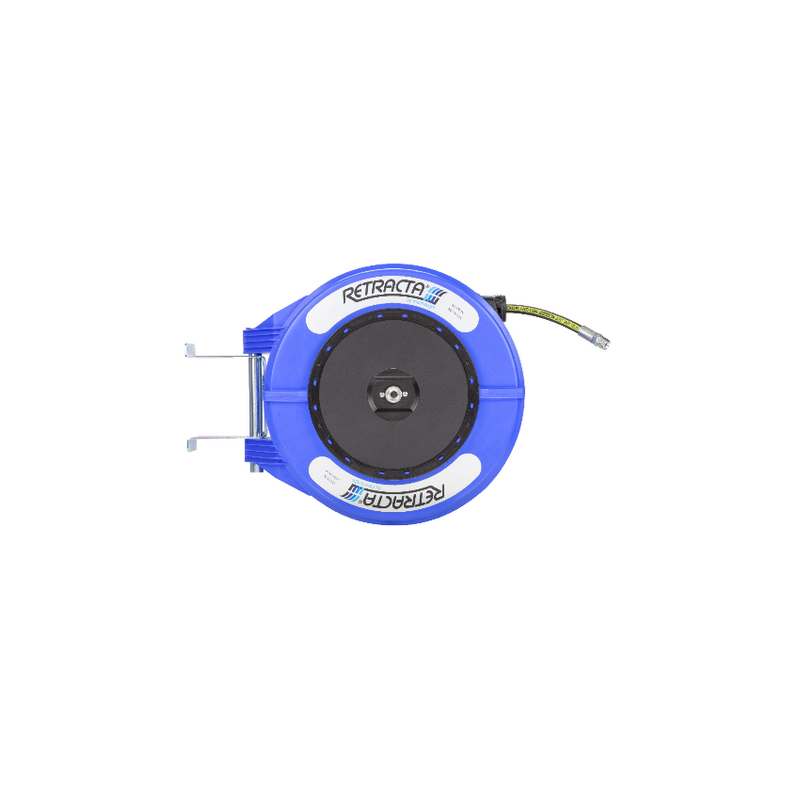

Macnaught Retracta R3 Oil Hose Reel - 1/2" x 15m, Blue Case (OMP415B-01)
Retracta R3 Series blue case Hose Reel - 1/2" (12mm) 15m oil black wire reinforced rubber (SAE100R17) hose.
Technical Specifications
| Case Colour | Blue |
| Type | Oil |
| Hose Inside Diameter | 1/2" (12mm) |
| Hose Length | 15 metres |
| Hose Colour | Black |
| Working Pressure | 1000 psi |
| Maximum Temperature | 90°C |
| Feed Hose Inlet | Not included |
| Reel Inlet | 1/2" BSPT (F) |
| Reel Outlet | N/A |
| Hose Outlet | 1/2" BSPT (M) |
Features & Benefits
| •UV stabilised & impact resistant poly case |
| •Designed & manufactured in Australia |
| •ProGlide™ high wear resistant mouth |
| •Advanced spring technology |
| •180° Galvanised steel swivel mounting bracket |
| •Light weight & easy to handle |
| •Hybrid polymer hose |
Package Includes
| •Retracta R3 Series Oil Hose Reel |
Recommended Use With
| •RA-MLB R3 Multi Position Locking Bracket |
The information contained in this data sheet is based on data considered to be accurate. No warranty is expressed or implied regarding the accuracy of this data. Product specifications and availability are subject to change without notice. Lube Control Pty Ltd accepts no responsibility for any loss or damage arising from the use of this information.
Technical Documents
R3 Series Manual
