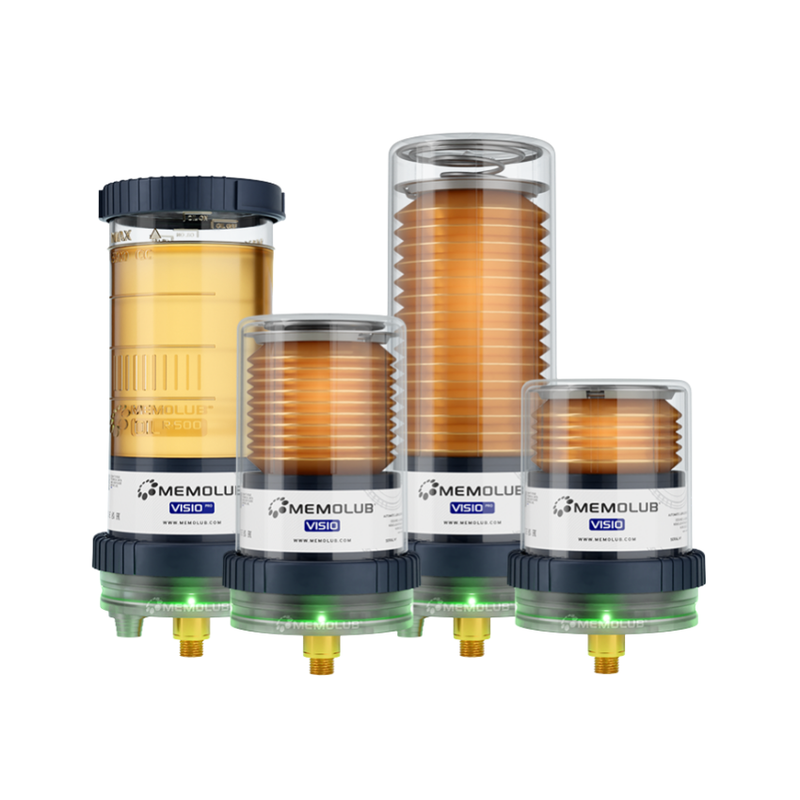

Memolub HPS Visio Pump
The Memolub Visio Series is an advanced automatic single-point lubricator designed for reliable, programmable grease and oil delivery to machinery lubrication points. Available in 120cc, 240cc, and 480cc cartridge sizes — as well as a 500cc refillable oil reservoir — the Visio Series features a transparent housing for at-a-glance level monitoring and a colour-coded LED feedback system for instant status checks. The Visio Pro variant adds external PLC connectivity for fully integrated, remotely controlled lubrication in industrial automation environments.
Technical Specifications
| Ref. IDs | 6300, 6311, 6312, 6313, 6322, 6323, 1620, 6317, 6327 |
| Cartridge Sizes | 120cc (4 oz) | 240cc (8.1 oz) | 480cc (16.2 oz) | OILR-500 Refillable Oil Reservoir 500cc (16.9 oz) |
| Lubricant Compatibility | Grease & Oil (up to NLGI 2) |
| Power Source — Visio | Battery: 3 × 1.5V DC AA (4.5V DC total) |
| Power Source — Visio Pro | External supply via 6DIN M16 connector: 6–36V DC |
| PLC Connection | Visio: N/A | Visio Pro: Yes (optocoupler input/output, 24V DC signal) |
| Max. Outlet Pressure | 25 bar |
| Volume per Stroke | 0.6 cc (adjustable with stroke washers) |
| Stroke Duration | 8 seconds |
| Minimum Stroke Interval | 15 minutes |
| Dosing Periodicity (2nd Gen, Wheel 1–9) | 48 hours down to 1 hour per cycle (0.3–14.4 cc/day max. output) |
| Stroke Washer Adjustment | 0 to 6 washers + circlip; reduces output volume per cycle |
| Max. Remote Installation Distance | Single point: 8 m | Multipoint (2–8 outlets): 6 m |
| Thread Connection | BSP 1/4 (base) | BSP 1/8 (remote lube point) |
| Short Circuit Protection | Yes |
| Noise Level | Leq < 70 dB |
| Certifications | CE (2006/42/EC Machinery Directive) | UKCA | EAC (TR CU 010/2011) | WEEE compliant |
Features
| •Transparent housing for continuous visual monitoring of lubricant level without removing the unit |
| •Colour-coded LED status indicator: green (normal operation), red (motor fault / pipe clogged), yellow (abnormal temperature / pump issue), blue (low battery / empty cartridge) |
| •Advanced machine learning capability (2nd generation): automatically accounts for environmental conditions during a 20-cycle learning period to optimise lubrication accuracy |
| •10-position frequency wheel (positions 1–9 for timed dosing; position 0 for external PLC control on Visio Pro) with stroke washer fine-tuning for precise volume adjustment |
| •Visio Pro supports intermittent and continuous PLC-controlled modes with "busy" and "default" output signals for full system integration |
| •Modular two-part design (VISIO Base + VISIO Module) — base remains permanently installed at the lube point while the module is removed for easy cartridge and battery replacement |
| •Supports direct, remote (up to 8 m single point), and multipoint installation configurations with up to 8 outlets via quick-connect hose fittings |
| •Push-button check function (2nd gen) or capacitive touchpad (1st gen) for on-demand test run and status verification without interrupting machine operation |
| •Compatible with 120cc, 240cc, and 480cc lubricant cartridges as well as the OILR-500 refillable oil reservoir; cartridge lifetimes of up to 48 months achievable at low dosing settings |
Applications
| •Rolling element bearings and plain bearings requiring consistent, programmed re-lubrication intervals |
| •Electric motors, fans, pumps, and conveyor systems where manual lubrication access is difficult or hazardous |
| •Automated production lines and PLC-controlled machinery requiring synchronised lubrication (Visio Pro) |
| •Remote or hard-to-reach lubrication points where a remote installation kit with hose lines is used |
| •Multi-point lubrication applications requiring a single lubricator to service up to 8 separate lube points simultaneously |
Always install Memolub Visio Series in the upright position. Use only manufacturer-recommended lubricant cartridges and batteries. Do not open the housing — the internal spring is under load. For multipoint installations exceeding 8 outlets, contact your distributor. Incorrect installation orientation voids the warranty.
