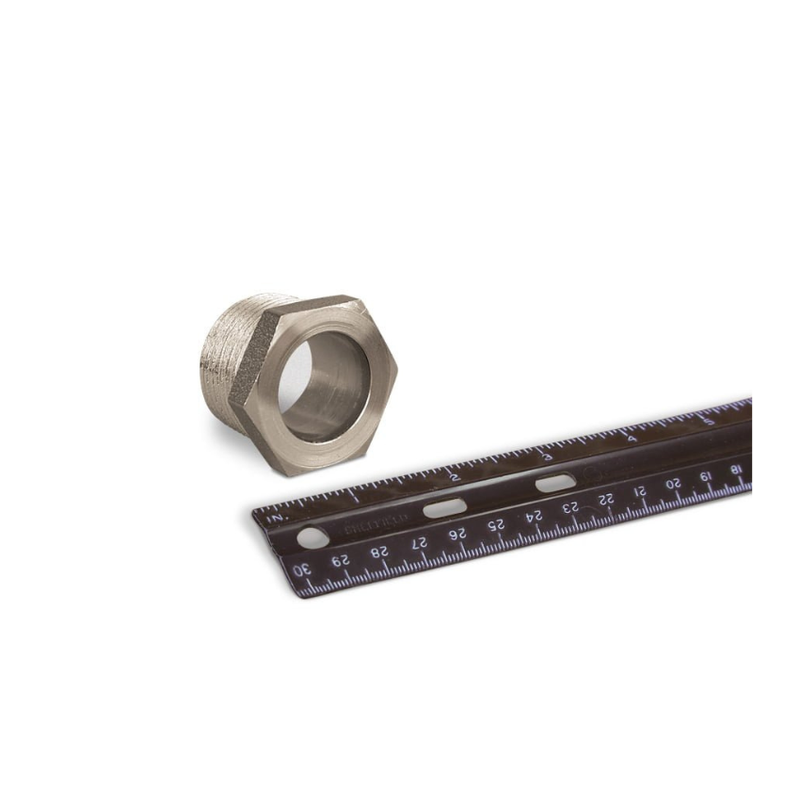

Oil Level Window Without Reflector, NPT
The Oil-Rite Gasketed Window Sights with N.P.T. Mounting (Series A-2890, Less Reflector) are designed for fluid sighting on hydraulic tanks, pressure vessels, reservoirs, packaged power equipment, hydraulic lines and piping, or any application where oil or fluid inspection is essential. The plated steel hexagon body mounts directly into any standard pipe thread. Available in N.P.T. sizes from 3/8" to 2".
Product Specifications
| Style | OGW |
| Max Pressure | 125 P.S.I. |
| Max Temperature | 225°F |
| Body | Steel, Plated |
| Sight | Glass (Acrylic available on request) |
| Seals | Buna-N (Viton®, Butyl, Propylene or Silicone available on request) |
| Reflector | None (Less Reflector) |
Model Selection — Less Reflector
| A-2890-2 | N.P.T. 3/8" |
| A-2890-3 | N.P.T. 1/2" |
| A-2890-4 | N.P.T. 3/4" |
| A-2890-5 | N.P.T. 1" |
| A-2890-6 | N.P.T. 1¼" |
| A-2890-7 | N.P.T. 1½" |
| A-2890-8 | N.P.T. 2" |
Features & Benefits
| •Plated hexagon steel body mounts directly into any standard N.P.T. pipe thread — no special fittings required |
| •Clear glass sight does not distort or allow meniscus of liquid — easily replaced without removing the sight body |
| •Buna-N gasketed seal provides a leak-tight, reliable seal between the sight and body |
| •Suitable for indicating liquid level, observing liquid condition, fluid motion and mechanical movement |
| •Two or more sights can be mounted to indicate High-Low or in-between levels |
| •Acrylic sight and alternative seal materials (Viton®, Butyl, Propylene, Silicone) available on request |
The information contained in this data sheet is based on data considered to be accurate. No warranty is expressed or implied regarding the accuracy of this data. Product specifications and availability are subject to change without notice. Lube Control Pty Ltd accepts no responsibility for any loss or damage arising from the use of this information.
