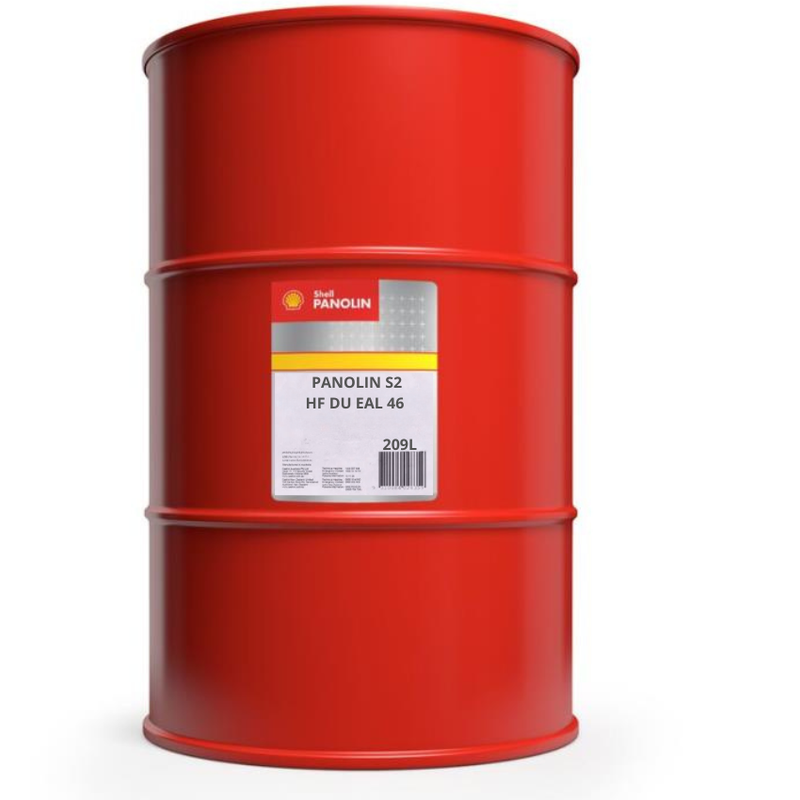

PANOLIN S2 HF DU EAL 46, 209L
PANOLIN S2 HF DU EAL 46 is readily biodegradable with low ecotoxicity, particularly suited for use in environmentally sensitive areas where eco-label compliance is required including US waters. Fully synthetic esters, blended with ashless additives, provide this fluid with an excellent blend of lubrication performance and environmental acceptability.
Specifications
| Brand | PANOLIN |
| Product Type | Environmentally Acceptable Lubricant (EAL) Hydraulic Fluid |
| Viscosity Grade | ISO VG 46 |
| Base Fluid | Fully Synthetic Esters with Ashless (Zinc-Free) Additives |
| Available Pack Sizes | 209 L |
Features & Benefits
| •Good wear protection – advanced ashless (zinc-free) anti-wear additives provide protection over a wide range of conditions, with proven protection in tough industry standard tests such as the Eaton Vickers 35VQ25 vane pump and Komatsu HPV35+35 high pressure piston pump. The excellent anti-wear properties and high viscosity index (VI) mean that it can often be used where ISO 11158 (HM/HV) and DIN 51524 Part 2 or Part 3 (HLP/HVLP) mineral oil hydraulic fluids are specified. However, bulk fluid operating temperatures should not be allowed to exceed 90°C |
| •Maintaining system efficiency – excellent viscosity/temperature characteristics can minimise the changes of viscosity with variation in operating temperature, giving true ‘multigrade’ characteristics. Outstanding cleanliness and filterability, coupled with excellent water separation, air release and antifoam characteristics, all help contribute to maintaining or enhancing the efficiency of hydraulic systems |
| •Lower Environmental Impact – recommended for use in environmentally sensitive areas. An ‘environmentally acceptable lubricant’ as defined by the USA EPA 2013 Vessel General Permit, offering reduced impact of leak or accidental spillage into the environment compared to conventional mineral oils. Readily biodegradable – biodegraded by over 60% after 28 days in the OECD 301 B carbon dioxide evolution test. Low ecotoxicity – classified as ‘not harmful’ to bacteria, algae, freshwater and marine invertebrates, and fish when tested as water-accommodated fractions (WAFs) according to OECD and EPA test guidelines |
Main Applications
| •For stationary and mobile hydraulic systems including earthmoving and forestry hydraulic systems, the machine industry, construction and hydroelectric engineering |
| •Compressors, bearing lubrication and oil circulation systems |
| •Marine hydraulic systems |
| •Environmentally sensitive areas |
| •PANOLIN fluids are miscible with mineral oils – in order to ensure that the environmental properties and performance are maintained, the system should be drained and flushed thoroughly when changing fluids |
Specifications & Approvals
| •ISO 15380: 2023 HEES |
| •Meets USDA Bio-preferred programme |
| •Meets requirements of EU Ecolabel certificate number NL/027/019 |
| •Meets requirement of United States Environmental Protection Agency’s (EPA) 2013 vessel general permit (VGP) |
| •Swedish Standard SS 15 54 34 SP |
| •Sperry Marine, Quantum Marine Engineering, Rolls Royce Marine |
| •ISO 12922 (2012) HFDU |
| •FM Approved |
| •For a full listing of equipment approvals and recommendations please consult the Technical Helpdesk or the OEM Approval website |
The information contained in this data sheet is based on data considered to be accurate. No warranty is expressed or implied regarding the accuracy of this data. Product specifications and availability are subject to change without notice. Lube Control Pty Ltd accepts no responsibility for any loss or damage arising from the use of this information.
