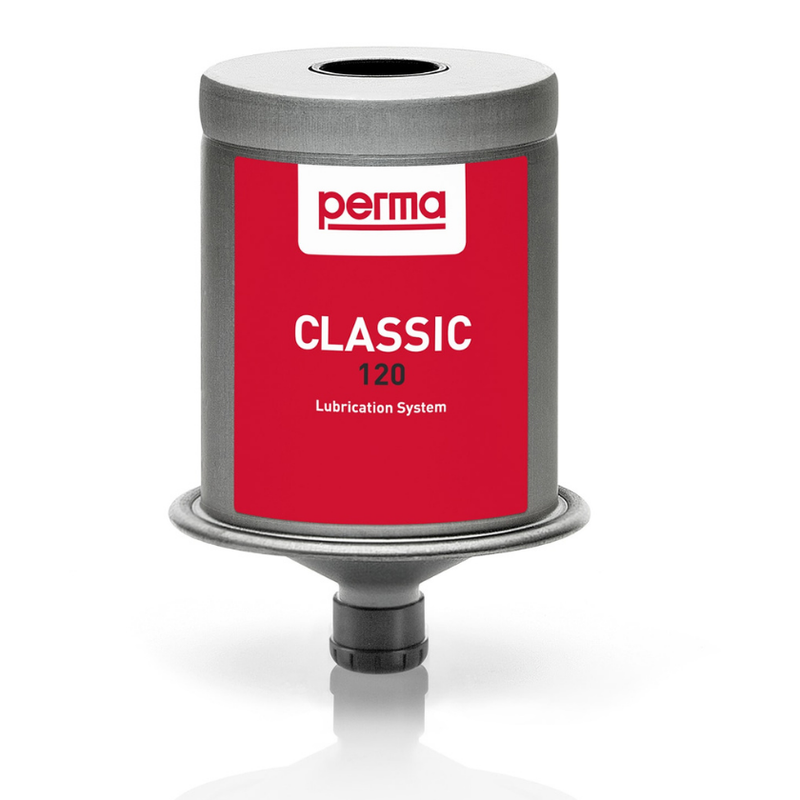

Perma Classic (Boxes of 20)
The perma CLASSIC is a simple, robust and reliable single-point automatic lubrication system driven by an electrochemical reaction via a gas generator. Suitable for all types of applications with ambient temperatures from 0 °C to +40 °C, its 120 cm³ lubricant volume can be discharged over 1, 3, 6 or 12 months. The robust steel housing makes it ideal for harsh environments including mining, steel, automotive and mechanical engineering applications. Activation requires no special tools — simply screw in the activator until the eyelet comes off.
Technical Specifications
| Type | Single-point automatic lubricator – electrochemical gas generator drive |
| Item | Perma CLASSIC |
| Series | Classic |
| Discharge Period @ +20 °C | 1, 3, 6 or 12 months (perma MULTI LC 150-2 / SF01) |
| Lubricant Volume | 120 cm³ / 4.06 oz |
| Operating Temperature | 0 °C to +40 °C / 32 °F to +104 °F |
| Maximum Pressure Build-up | 4 bar / 58 psi |
| Lubricants | Greases up to NLGI 2 | Oils |
| Connection Type | Outside thread R1/4 |
| Housing Material | Steel (robust – for harsh environments) |
| Dimensions | Ø 70 × 99 mm |
| ATEX Classification | I M2 h Mb X | II 2G h IIC T6 Gb X | II 2D h IIIC T80°C Db X |
Features
| •Robust steel housing – designed for use in harsh environments |
| •Simple activation with activator screw – one-time activation, no special tools required |
| •Four discharge settings: 1, 3, 6 or 12 months – simple and inexpensive automatic single-point lubrication |
| •Electrochemical drive via gas generator – no batteries or external power required |
| •Electrolyte fluid uses environmentally friendly citric acid |
| •ATEX certified – suitable for use in explosive atmospheres |
| •Made in Germany (CE marked) |
Applications
| •Roller and sliding bearings |
| •Sliding guides, open gears and gear racks |
| •Spindles, shaft seals and chains |
| •Mining, steel, automotive and mechanical engineering industries |
