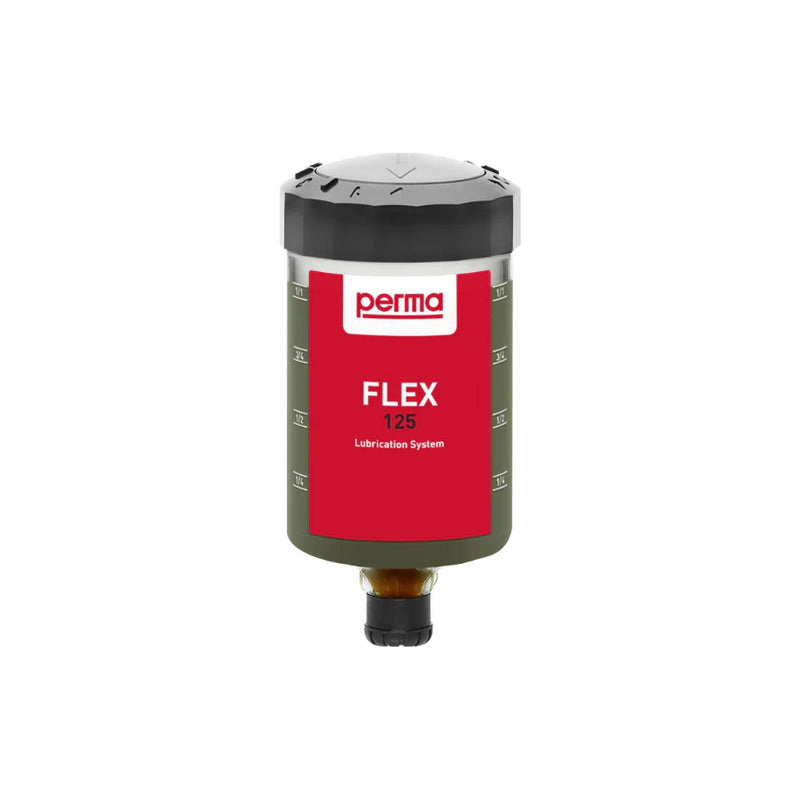

Perma Flex 125cc (Boxes of 20)
The perma FLEX is a compact, single-point automatic lubrication system designed for demanding indoor and outdoor applications. Available in 125 cm³, it features an electronically controlled electrochemical drive that continuously supplies lubrication points with fresh lubricant. The discharge period is easily adjustable from 1 to 12 months via the rotary dial on top — even after activation — and the system arrives fully assembled and ready to use straight out of the box. With IP 68 ingress protection and Ex-proof/FM certification, perma FLEX delivers reliable performance in dusty, moist, hazardous, and extreme-temperature environments.
Technical Specifications
| Drive | Electrochemical reaction |
| Discharge Period (at +20 °C / 68 °F) | 1, 2, 3 … 12 months (perma MULTI LC 150-2 / SF01) |
| Lubricant Volume | 60 cm³ (2.03 oz) | 125 cm³ (4.23 oz) |
| Operating Temperature | -20 °C to +60 °C (-4 °F to +140 °F) |
| Pressure Build-Up | Max. 5 bar (75 psi) |
| Protection Class | IP 68 |
| Compatible Lubricants | Greases up to NLGI 2 | Oils (standard & special lubricants) |
| Thread Connection | R1/4 (outside thread) |
| Dimensions | FLEX 60: Ø 58 × 86.5 mm | FLEX 125: Ø 58 × 117 mm |
Features
| •All-in-one system — fully assembled and ready to use, no additional assembly required |
| •Rotary dial activation — simply turn to set the desired discharge period (1–12 months in monthly steps) |
| •Discharge period can be adjusted even after activation, and system can be switched off during non-operation periods |
| •IP 68 protection — reliable lubrication in extremely dusty and moist environments |
| •Ex-proof certified (II 1G Ex ia IIC T6 | II 1D Ex iaD 20 T85°C | I M1 Ex ia I) and FM certified — safe for use in hazardous and critical areas |
| •Wide operating temperature range (-20 °C to +60 °C) suitable for hot, cold, and year-round outdoor use |
| •Transparent housing (PA) allows visual lubricant level check at a glance |
| •Oil-filled units feature an integrated oil retaining valve (red plug) — compatible with both greases (up to NLGI 2) and oils |
Applications
| •Single-point lubrication for bearings and lubrication points across all types of industries |
| •Indoor and outdoor machinery operating in extreme temperature environments |
| •Hazardous area equipment requiring Ex-proof or FM-certified lubrication solutions |
| •Applications in dusty, moist, or wet environments where standard lubricators would fail |
