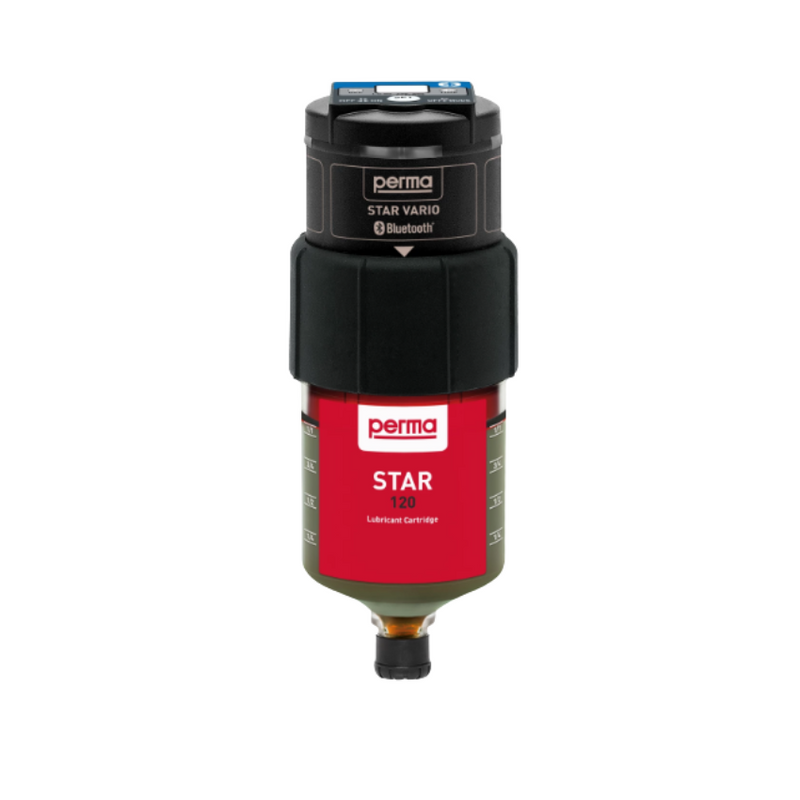

Perma Star Vario Bluetooth
PERMA Star Vario Drive - Bluetooth. With protection cover. Suits 60, 120 and 250, and 500cc size cartridges (cartridge not included)
The perma STAR VARIO BLUETOOTH is the new generation of automatic lubrication systems, operating fully automatically and independent of temperature and pressure with a very precise discharge. The system consists of a reusable electromechanical drive, an LC lubricant cartridge (60, 120, 250 or 500 cm³) and a battery pack. With Bluetooth connectivity, the system can be conveniently operated via the perma CONNECT app for realtime configuration, control and maintenance from a distance. Pressure build-up of 7.5 bar allows remote mounting up to 5 m, ideal for single-point lubrication of bearings, gears, spindles, shaft seals, chains and electric motors.
Technical Specifications
| Type | Electromechanical drive – reusable |
| Item | Perma STAR VARIO BLUETOOTH Drive |
| Series | Star Vario Bluetooth |
| Connectivity | Bluetooth – perma CONNECT app |
| Power Supply | Battery pack STAR VARIO (Alkaline) or Battery pack STAR VARIO low temperature (Lithium) |
| Discharge Period | 1, 2, 3 … 12 months | 1, 2, 3 … 52 weeks STAR LC 60: + 15, 18, 21, 24 months STAR LC 500: max. 6 months |
| Lubricant Volume | 60, 120, 250, 500 cm³ (2.03 / 4.06 / 8.45 / 16.91 oz) |
| Operating Temperature | –40 °C to +60 °C / –40 °F to +140 °F * |
| Maximum Operating Pressure | 7.5 bar / 109 psi |
| Protection Class | IP 67 | IP 65 |
| Lubricants | Greases up to NLGI 2 | Oils |
| Connection Type | Outside thread R1/4 |
| Max. Remote Mounting | 5 m |
| Dimensions – LC 60 | Ø 75 × 155 mm |
| Dimensions – LC 120 | Ø 75 × 178 mm |
| Dimensions – LC 250 | Ø 75 × 228 mm |
| Dimensions – LC 500 | Ø 75 × 324 mm |
Features
| •Bluetooth functionality – simple operation via perma CONNECT app |
| •Realtime configuration, control and maintenance from a distance |
| •Fully automatic operation – independent of temperature and counter pressure |
| •LCD display with push button shows discharge period, LC size and operating status |
| •Simple and self-explanatory operation – settings can be changed at any time |
| •Pressure build-up of 7.5 bar allows remote mounting up to 5 m – outside dangerous areas |
| •Four cartridge sizes – 60, 120, 250 and 500 cm³ – for individual lubricant metering |
| •Wide discharge period range: 1–12 months or 1–52 weeks (LC 60 up to 24 months) |
| •Compatible with Alkaline battery pack (standard) or Lithium battery pack (low temperature, below –20 °C) |
| •LC cartridge can be exchanged during running operation – no shutdown required |
| •Drive unit is reusable – one-time acquisition cost |
| •Increased workplace safety through remote monitoring and control |
| •Suitable for greases up to NLGI 2 and oils |
* To achieve functionality below –20 °C / –4 °F, Battery pack STAR VARIO low temperature (Lithium) must be used. Only use with suitable low temperature lubricants at –40 °C.
Disclaimer
Technical specifications may change. Please confirm with the manufacturer.
