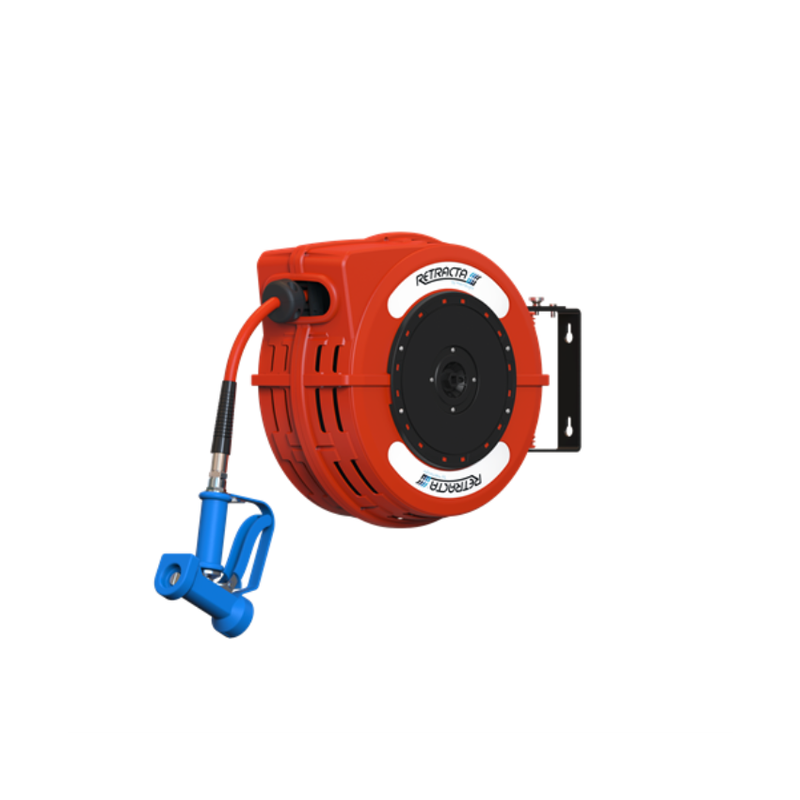

Macnaught Retracta C1 Hose Reel (Red) - Hot/Cold Water 1/2" x 12m + Spray Gun
Designed and tested by Macnaught to Retracta standards, the new C1 Series brings you a Retracta for smaller spaces. The new range of C1 Series Hose Reels are 35% smaller than the R3 Series and are ideal for small spaces and compact applications. The Retracta C1 Hot and Cold Water Hose Reels are ideal for applications requiring high temperature water and/or pressure for wash down areas.
Technical Specifications
| Case Colour | Red |
| Type | Hot / Cold Water |
| Hose Inside Diameter | 1/2" (12mm) |
| Hose Length | 12 metres |
| Hose Colour | Red |
| Working Pressure | 300 psi |
| Maximum Temperature | 80°C |
| Feed Hose Inlet | 1/2" BSP (F) Swivel |
| Reel Inlet | 1/2" BSPT (F) |
| Hose Outlet | 1/2" BSPT (M) |
| Feed Hose Length | 1.5 metres |
Features & Benefits
| •UV Stabilised & resistant poly case |
| •Australian designed |
| •180° Swivel bracket |
| •3 Position Reel swivel locking |
| •Powder coated steel bracket |
| •High Temperature Hose rated to 80°C |
| •Bend Restrictor for increased durability |
| •1.5 metre Feed Hose included |
| •Hot water Trigger Nozzle included |
Package Includes
| •Hose Reel - Hot / Cold Water |
| •Feed Hose - 1.5 metre |
| •Hot Wash Trigger Nozzle |
The information contained in this data sheet is based on data considered to be accurate. No warranty is expressed or implied regarding the accuracy of this data. Product specifications and availability are subject to change without notice. Lube Control Pty Ltd accepts no responsibility for any loss or damage arising from the use of this information.
Technical Documents
Retracta C1 Series Manual
Download PDF
GD0985 Retracta Brochure
Download PDF
C1_Series_Product_Sheets
