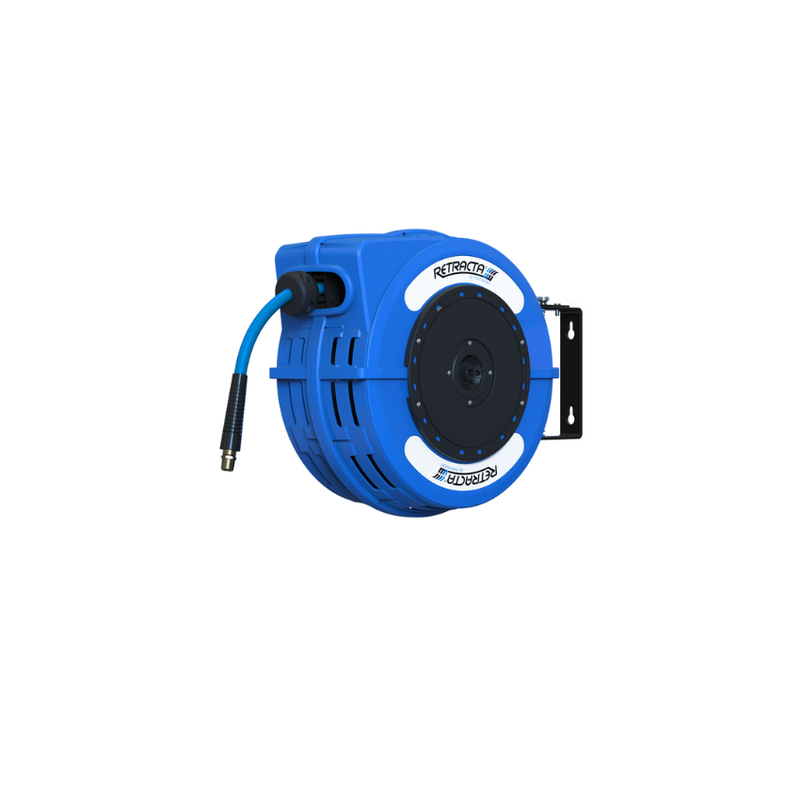

Macnaught Retracta C1 Hose Reel (Blue) - Air/Water 1/2" x 12m
Designed and tested by Macnaught to Retracta standards, the new C1 Series brings you a Retracta for smaller spaces. The new range of C1 Series Hose Reels are 35% smaller than the R3 Series and are ideal for small spaces and compact applications. The Retracta C1 Air Water Hose Reels are available with a hybrid polymer hose for flexibility, to lay flat and prevent tangles or kinking when under pressure.
Technical Specifications
| Case Colour | Blue |
| Type | Air / Water |
| Hose Inside Diameter | 12mm (1/2") |
| Hose Length | 12 metres |
| Hose Colour | Blue |
| Working Pressure | 250 psi |
| Maximum Temperature | 60°C |
| Feed Hose Inlet | 3/8" BSPT (M) |
| Reel Inlet | 3/8" BSPT (F) |
| Hose Outlet | 3/8" BSPT (M) |
| Feed Hose Length | 1.5 metres |
Features & Benefits
| •UV Stabilised & resistant poly case |
| •Australian designed |
| •180° Swivel bracket |
| •3 Position Reel swivel locking |
| •Powder coated steel bracket |
| •Hybrid Polymer Hose for flexibility, to lay flat and prevent tangles or kinking under pressure |
| •Bend Restrictor for increased durability |
| •1.5 metre Feed Hose included |
Package Includes
| •Hose Reel - Air / Water |
| •Feed Hose - 1.5 metre |
The information contained in this data sheet is based on data considered to be accurate. No warranty is expressed or implied regarding the accuracy of this data. Product specifications and availability are subject to change without notice. Lube Control Pty Ltd accepts no responsibility for any loss or damage arising from the use of this information.
Technical Documents
C1_Series_Product_Sheets
Download PDF
GD0985 Retracta Brochure
Download PDF
Retracta C1 Series Manual
