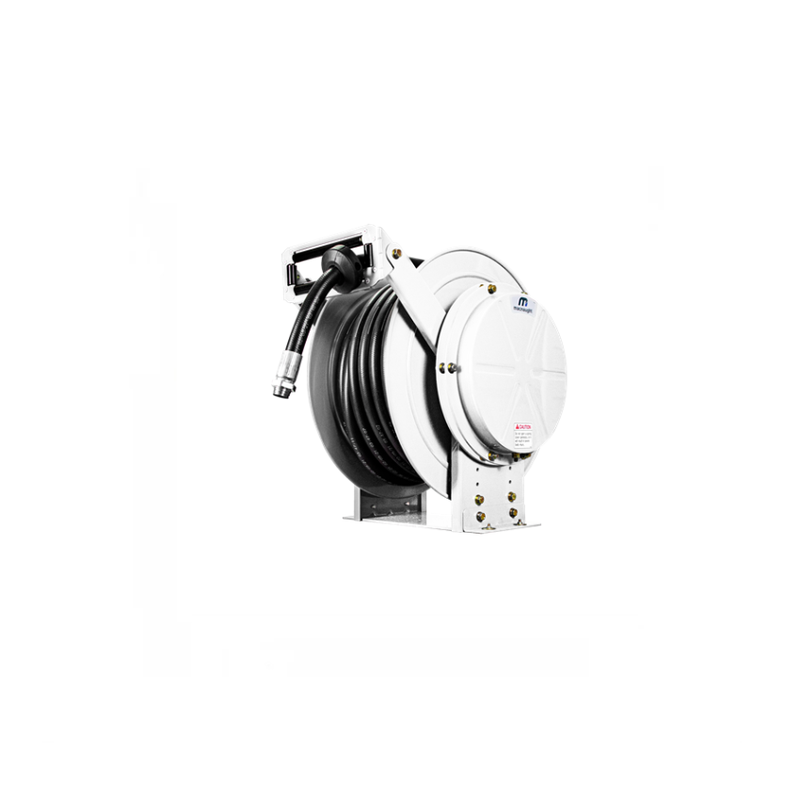

Macnaught Retracta F-Series Twin Pedestal Oil Reel - 1" x 23m
The Retracta F Series range of heavy duty reels are designed and manufactured using the highest quality materials and finish that guarantee reliability and durability. The reels are ideal for use in a wide range of applications and can be fitted in a variety of positions such as wall, floor, tank, truck or overhead.
Technical Specifications
| Colour | White |
| Hose Size (ID) | 1" (25mm) |
| Hose Length | 23m |
| Hose Material | Steel Wire Braided Synthetic Rubber |
| Working Pressure | 1000 psi |
| Maximum Temperature | 60°C |
| Reel Inlet | 1" BSPT (F) |
| Hose Outlet | 1" BSPT (M) |
| Weight | 60.35kg |
Features & Benefits
| •Heavy duty powder coated steel construction |
| •Heavy duty steel spring enclosure for safety and reliability |
| •Twin pedestal for strength and stability |
| •Adjustable roller guide direction for versatility |
| •Two spring packs for maximum hose return power |
Package Includes
| •Retracta F Series FN2523HOS-01 Hose reel & hose |
The information contained in this data sheet is based on data considered to be accurate. No warranty is expressed or implied regarding the accuracy of this data. Product specifications and availability are subject to change without notice. Lube Control Pty Ltd accepts no responsibility for any loss or damage arising from the use of this information.
Technical Documents
Product Sheet (FN2523HOS-01)
Download PDF
Manual (FN2523HOS-01)
