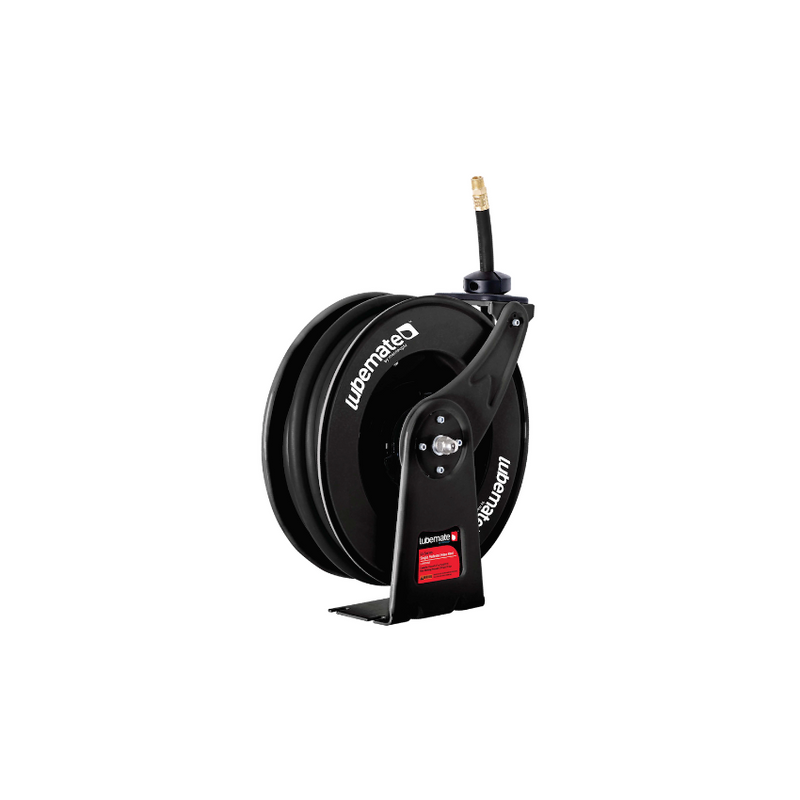

Lubemate Single Pedestal Air/Water Hose Reel - 3/8" (10mm) x 15m
The Lubemate L-S Series Single Pedestal hose reel has a robust construction for use in industrial and automotive field application. The single pedestal frame is an all-steel construction, reinforced with stamped ribs to provide exceptional strength and stability. The powder-coated, corrosion-resistant finish combined with an enclosed spring design, increases longevity in the reels lifespan. The guide arm can be adjusted in different positions to accommodate various mounting structures and its narrow footprint allows for multiple reels to fit alongside each other, taking up minimal space. The Lubemate Single Pedestal hose reel offers a reliable and cost-effective solution for your workshop. Ideal for applications relevant to automotive workshops, car and truck dealerships, lubrication trucks, mass transit vehicles, and general manufacturing.
Technical Specifications
| Hose Size | 10mm x 15m |
| Hose Type | Air/Water |
| Inlet | 3/8" BSPT (F) |
| Outlet | 3/8" BSPT (M) |
| Pressure Rating | 290 psi |
| Hose Material | NBR rubber |
Features & Benefits
| •Heavy-duty steel frame designed for robust application |
| •Corrosion-resistant powder-coated |
| •Long-lasting spring fully enclosed and lubricated |
| •Flexible positioning of guide arm for mounting on bench, ceiling or wall |
| •Limited spare parts available |
Repair Kits
| •L-SK254s - Hose stopper |
| •L-SK263s - Swivel assembly |
The information contained in this data sheet is based on data considered to be accurate. No warranty is expressed or implied regarding the accuracy of this data. Product specifications and availability are subject to change without notice. Lube Control Pty Ltd accepts no responsibility for any loss or damage arising from the use of this information.
Technical Documents
Product Sheet L-AWS1015
Download PDF
LS Series Manual
