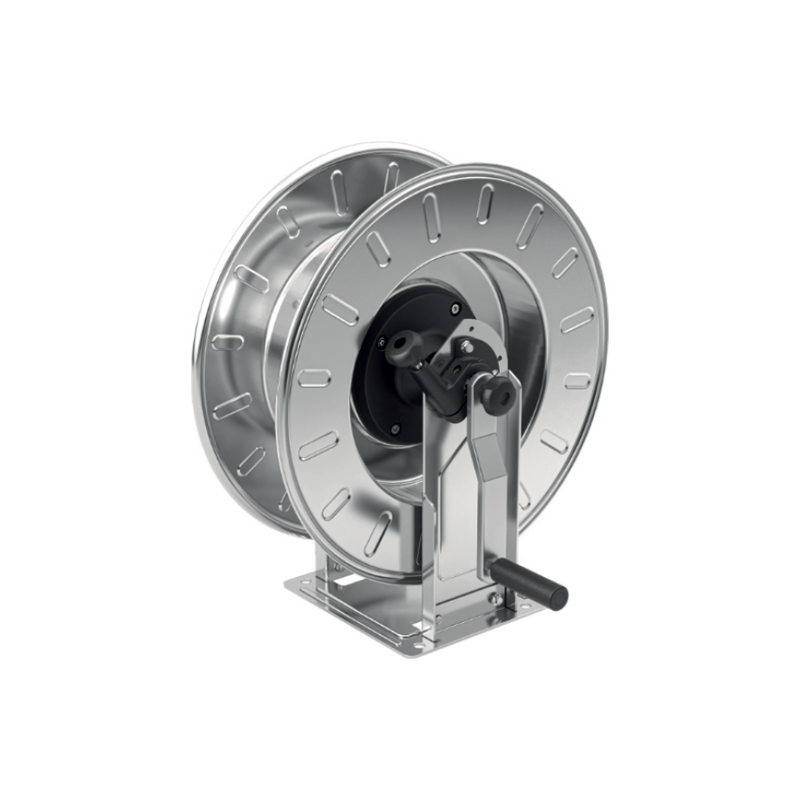

Macnaught Retracta Y Series SX Hand Crank Reel (SS) - 1/2" x 35m
The Retracta Y Series hose reel range has been introduced to meet the demands of extreme environments where wash down hose reels are used. Designed with safety features from the ground up, the Y Series reels are made from high quality materials providing the ultimate durability. Retracta Y Series SX stainless steel hand crank reel, foldable handle with safety system, swivel joint and adjustable clutch. 1/2" inlet/outlet, maximum 35m hose. Hose not included.
Technical Specifications
| Material | Stainless Steel (AISI 304) / Nylon |
| Type | Air / Water 150°C / Oil |
| Hose Inside Diameter | Not included |
| Hose Length | 35m |
| Hose Colour | Not included |
| Working Pressure | 5800 psi |
| Maximum Temperature | 150°C |
| Reel Inlet | 1/2" BSPT (M) |
| Reel Outlet | 1/2" BSPP (M) |
| Hose Outlet | Not included |
Features & Benefits
| •Safety handle system to prevent hazardous handle free spin |
| •Foldable handle to prevent catching |
| •Adjustable clutch for controlled unwinding |
| •Stainless steel components for maximum durability |
| •Viton-PTFE high quality seals |
| •Accessible mounting points for quick and easy installation |
| •Made in Italy for the highest quality |
| •Optional 4 roller guide arm for easy winding |
| •Optional rotational Locking Pin to prevent the hose accidentally unwinding |
| •Twin pedestal ribbed design for maximum rigidity |
Package Includes
| •Y Series SX Hose Reel |
Optional Accessories
| •RA-RG-YSXA Y Series SX Roller Guide Arm |
| •RA-LP-YS Y Series Rotational Locking Pin |
