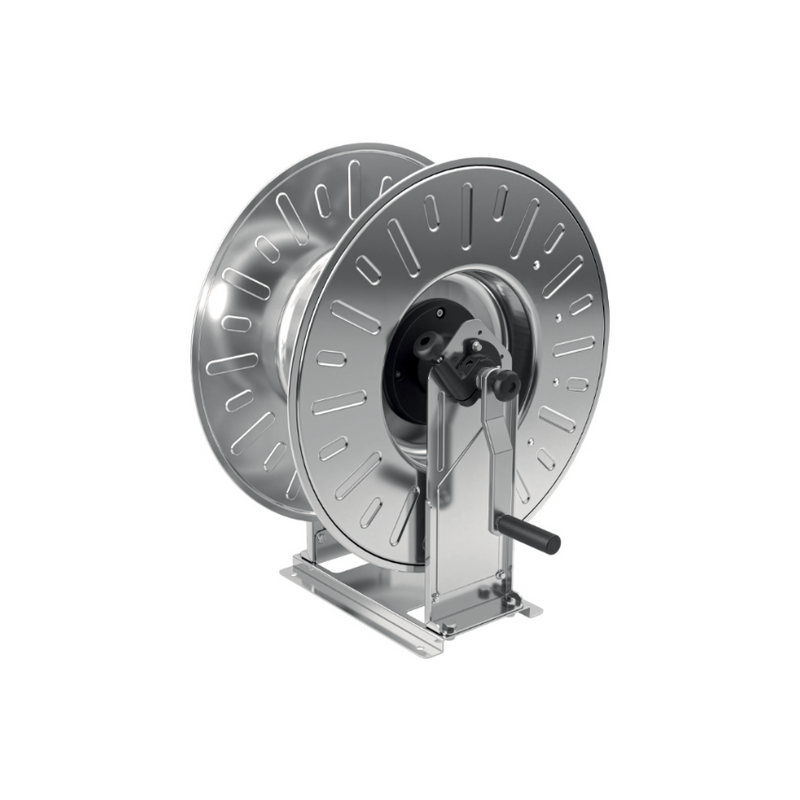

Macnaught Retracta Y Series SY Hand Crank Reel (SS) - 1/2" x 50m
The Retracta Y Series hose reel range has been introduced to meet the demands of extreme environments where wash down hose reels are used. Designed with safety features from the ground up, the Y Series reels are made from high quality materials providing the ultimate durability. Retracta Y Series SY stainless steel hand crank reel, foldable handle with safety system, swivel joint and adjustable clutch. 1/2" inlet/outlet, maximum 50m hose. Hose not included.
Technical Specifications
| Material | Stainless Steel (AISI 304) / Nylon |
| Type | Air / Water 150°C / Oil |
| Hose Inside Diameter | Not included |
| Hose Length | 50m |
| Hose Colour | Not included |
| Working Pressure | 5800 psi |
| Maximum Temperature | 150°C |
| Reel Inlet | 1/2" BSPT (M) |
| Reel Outlet | 1/2" BSPP (M) |
| Hose Outlet | Not included |
Features & Benefits
| •Safety handle system to prevent hazardous handle free spin |
| •Foldable handle to prevent catching |
| •Adjustable clutch for controlled unwinding |
| •Stainless steel components for maximum durability |
| •Viton-PTFE high quality seals |
| •Accessible mounting points for quick and easy installation |
| •Made in Italy for the highest quality |
| •Optional 4 roller guide arm for easy winding |
| •Optional rotational Locking Pin to prevent the hose accidentally unwinding |
| •Twin pedestal ribbed design for maximum rigidity |
Package Includes
| •Y Series SY Hose Reel |
Optional Accessories
| •RA-RG-YSYA Y Series SY Roller Guide Arm |
| •RA-LP-YS Y Series Rotational Locking Pin |
The information contained in this data sheet is based on data considered to be accurate. No warranty is expressed or implied regarding the accuracy of this data. Product specifications and availability are subject to change without notice. Lube Control Pty Ltd accepts no responsibility for any loss or damage arising from the use of this information.
Technical Documents
Manual(Y_SERIES)
Download PDF
Product Sheet (GD0877_Y_Series)
