Screen bearing Lube Kits
Complete Lube System, 24V, 2L to suit 2 x Screen Bearings in Quarry and Mines

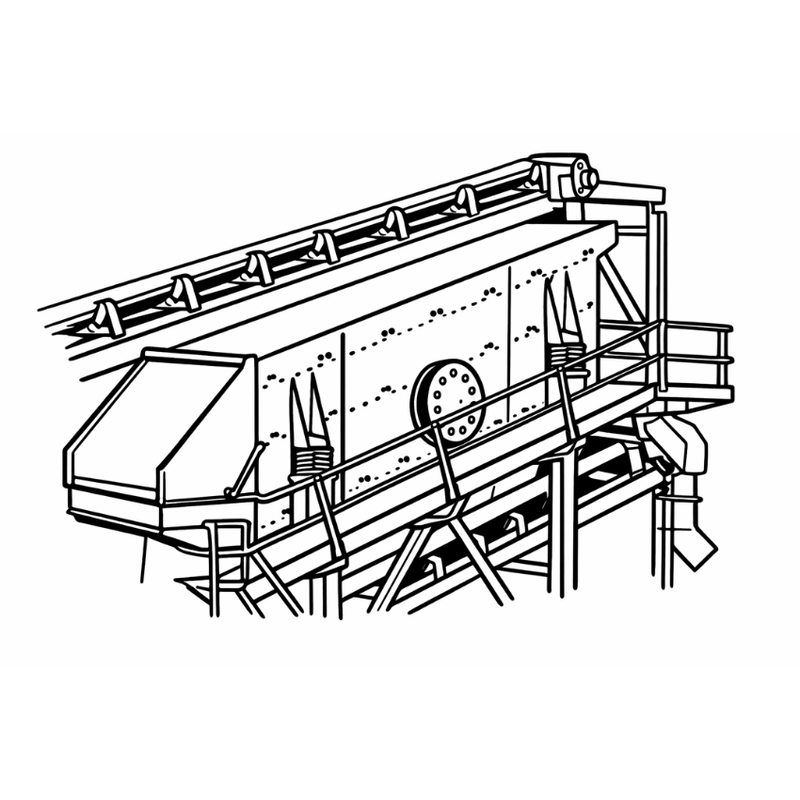

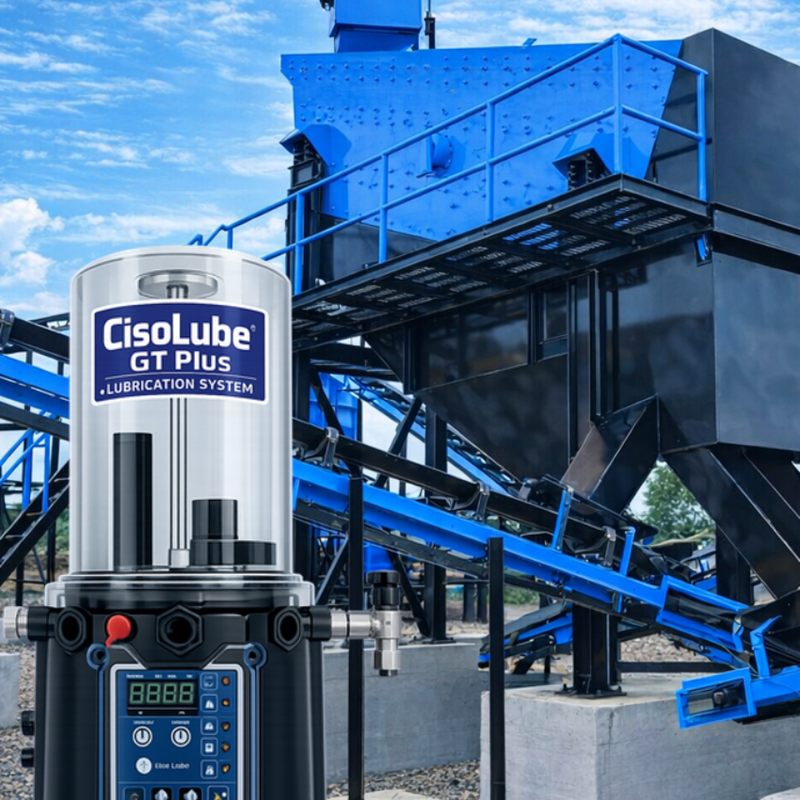

The CLS-SCREEN-2PTS-24V is Lube Control's complete centralised lubrication system designed specifically for mining and quarry screen bearings — covering both the drive and non-drive bearings in a single system. Built around the Ciso GT Plus pump and a 2-outlet DXF progressive divider valve, the kit delivers a precise, pre-programmed dose of grease to each bearing continuously during operation, forming a grease collar that keeps dust out and eliminates the need for manual greasing. The standard 2L reservoir will last between 10 and 40 weeks depending on the grease quantity set, and the system is rated for the harshest mining and quarrying environments.

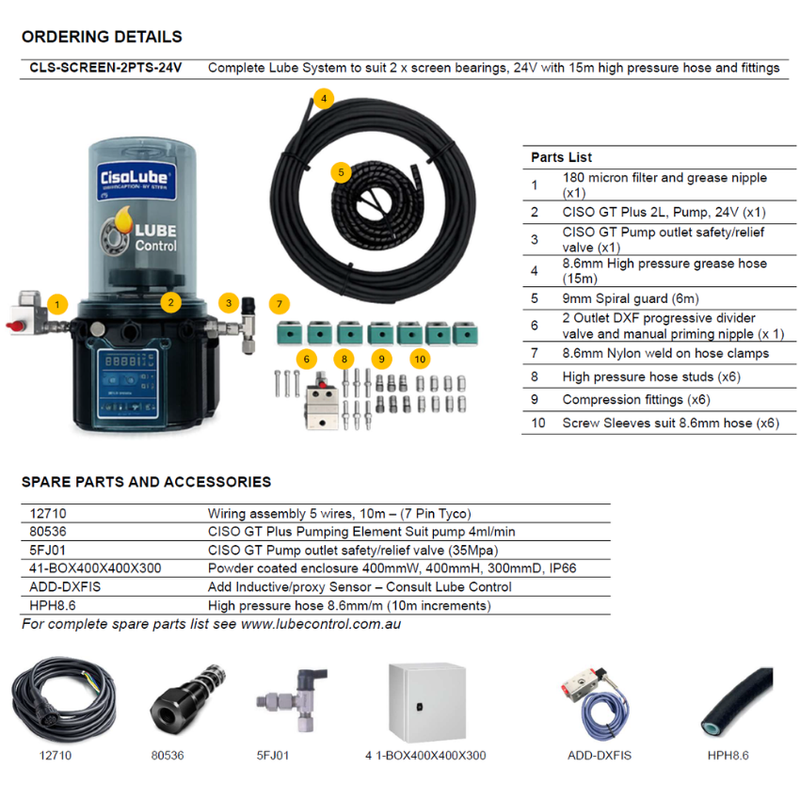

What's Included
| 1. Filter & Grease Nipple | 180 micron filter and grease nipple (x1) |
| 2. GT Plus Pump | CISO GT Plus 2L Pump, 24V — with integrated timer, pumping element and relief valve (x1) |
| 3. Safety/Relief Valve | CISO GT Pump outlet safety/relief valve (x1) |
| 4. High Pressure Hose | 8.6mm high pressure grease hose, 15m |
| 5. Spiral Guard | 9mm spiral guard, 6m |
| 6. DXF Divider Valve | 2-outlet DXF progressive divider valve with manual priming nipple and visual cycle pin (x1) |
| 7. Hose Clamps | 8.6mm nylon weld-on hose clamps |
| 8. High Pressure Hose Studs | High pressure hose studs (x6) |
| 9. Compression Fittings | Compression fittings (x6) |
| 10. Screw Sleeves | Screw sleeves to suit 8.6mm hose (x6) |
Technical Specifications — GT Plus Pump
| Voltage | 24VDC (7-pin Tyco bayonet plug) |
| Reservoir Capacity | 2L (transparent) — standard kit |
| Number of Pumping Elements | Up to 5 |
| Flow per Pumping Element | 4 ml/min |
| Operating Pressure per Pumping Element | 300 bar (30 MPa) |
| Outlet Connection | 6mm compression fitting |
| Lubricants | Oil to NLGI 000, 00, 0, 1, 2 |
| Operating Temperature | -50°C to +90°C |
| Manual Override | Yes |
| Programming | Integrated control timer |
| Monitoring | Low level alarm and over-pressure relief valve |
Features
| •Extends screen bearing life by ensuring both drive and non-drive bearings receive the correct amount of grease frequently and reliably |
| •Lubricates continuously during operation — eliminates manual greasing and associated downtime |
| •Forms a grease collar around each bearing to keep dust and contaminants out — critical in mining and quarry environments |
| •2-outlet DXF progressive divider valve with visual cycle pin — confirms grease is flowing through the system correctly |
| •Screen bearings typically require 5 ml to 20 ml of grease per day — the standard 2L reservoir will last between 10 and 40 weeks when set correctly |
| •300 bar operating pressure — can reach lubrication points more than 20m from the pump |
| •Integrated programmable timer with low level alarm for unattended, worry-free operation |
| •Manual override grease nipple for on-demand priming or commissioning |
Optional Extras & Variations
| •Reservoir sizes: 2L, 4L, 8L or 12L |
| •Voltage options: 12V, 24V or 240V |
| •Additional pumping elements for lubricating other parts of the machine |
| •IP66 powder-coated enclosure (400mm W x 400mm H x 300mm D) — part no. 41-BOX400X400X300 |
| •Electrical monitoring of grease flow through the DXF divider valve (ADD-DXFIS inductive/proxy sensor — consult Lube Control) |
Ordering Details
| CLS-SCREEN-2PTS-24V | Complete Lube System to suit 2 x screen bearings, 24V, with 15m high pressure hose and fittings |
Spare Parts & Accessories
| 12710 | Wiring assembly 5 wires, 10m (7-pin Tyco) |
| 80536 | CISO GT Plus Pumping Element, 4 ml/min |
| 5FJ01 | CISO GT Pump outlet safety/relief valve (35 MPa) |
| 41-BOX400X400X300 | Powder coated enclosure, 400mm W x 400mm H x 300mm D, IP66 |
| ADD-DXFIS | Inductive/proxy sensor for electrical monitoring of grease flow — consult Lube Control |
| HPH8.6 | High pressure hose 8.6mm per metre (supplied in 10m increments) |
For a complete spare parts list or to discuss custom system configurations, contact Lube Control Pty Ltd on 1300 917 946 or sales@lubecontrol.com.au.
Technical Documents
Screen Bearing Complete Lubrication System
Download PDFDisclaimer
Technical specifications may change. Please confirm with the manufacturer.
