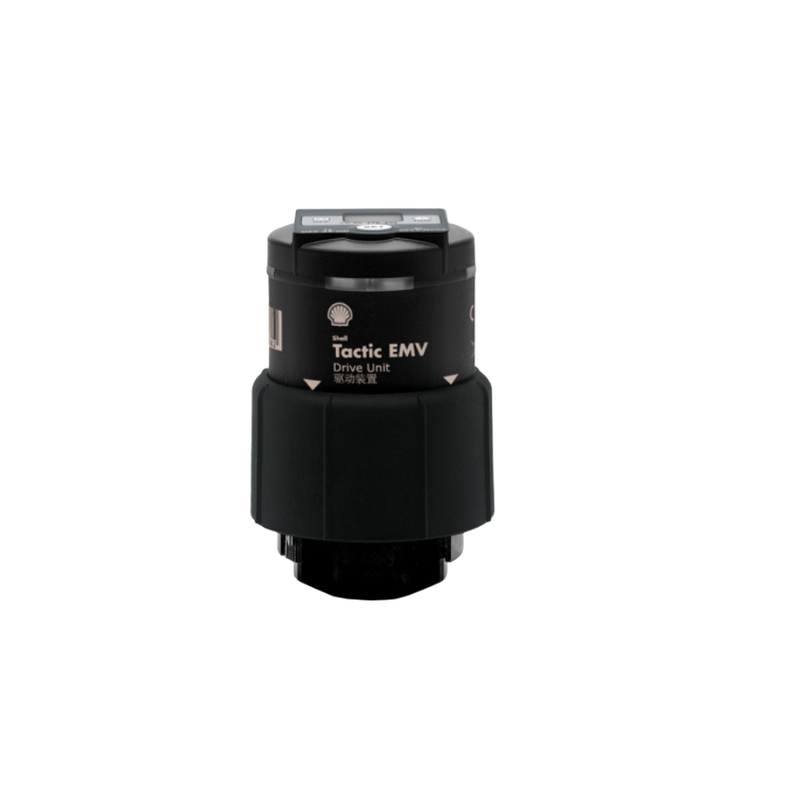

Shell Tactic EMV Drive Unit Gen 3 (10 Pcs)
The Shell Tactic EMV Drive Unit (Gen 3) automated lubrication system is designed to extend the service life of bearings and deliver superior reliability results compared to manual lubrication. A reliable supply of clean lubricant is vital for optimal bearing service — if bearings are not sufficiently lubricated, the result can be premature failure, increased maintenance costs and equipment downtime. Supplied in packs of 10, the Shell Tactic EMV lubrication solutions include cartridge sizes of 120, 250 and 500 cm³ with time setting options in weeks and months, providing lubrication rate options to help maintain a broad range of critical equipment.
Specifications & Approvals
| Type | Automated single-point lubricator – drive unit |
| Item | Shell Tactic EMV Drive Unit Gen 3 |
| Series | Shell Tactic EMV |
| Pack Size | 10 pcs per item ordered |
| Cartridge Sizes | 120, 250 and 500 cm³ |
| Time Settings – Weeks | 1 to 26 weeks (all cartridge sizes) |
| Time Settings – Months | 1 to 12 months (120 & 250 cm³) | 1 to 6 months (500 cm³) |
| Operating Temperature | –10 °C to +60 °C ambient at lubricator location |
| Remote Mounting | Available – can be used to reduce ambient temperature at lubricator location |
| Dispensing Rate | Not affected by temperature |
| Protection Class | IP 65 (without extended protection cover) | IP 67 (with extended protection cover) |
| Power Supply | 4.5 V alkaline battery set |
Features
| •Delivery of small amounts of lubricant at short time intervals provides superior lubrication outcomes compared to strategies which deliver larger amounts at long time intervals |
| •Conversion of manual lubrication tasks to automated lubrication liberates time which can be invested into other preventative maintenance work tasks |
| •Option of weekly or monthly time settings allow lubricator service planning to be optimised with respect to maintenance shutdown cycles |
| •Remote mounted Shell Tactic EMV solutions allow lubricators to be serviced while equipment is operating |
| •Suitable for use on large conveyor pulley bearings and large slurry pumps via the 500 cm³ cartridge size |
Applications
| •Large conveyor pulley bearings and large slurry pumps |
| •Remote installation via stainless steel beam clamps and cage hangers on beam sections and square mesh safety cage |
| •Any critical bearing application requiring reliable automated re-lubrication – other configurations available upon request |
Disclaimer
Technical specifications may change. Please confirm with the manufacturer.
