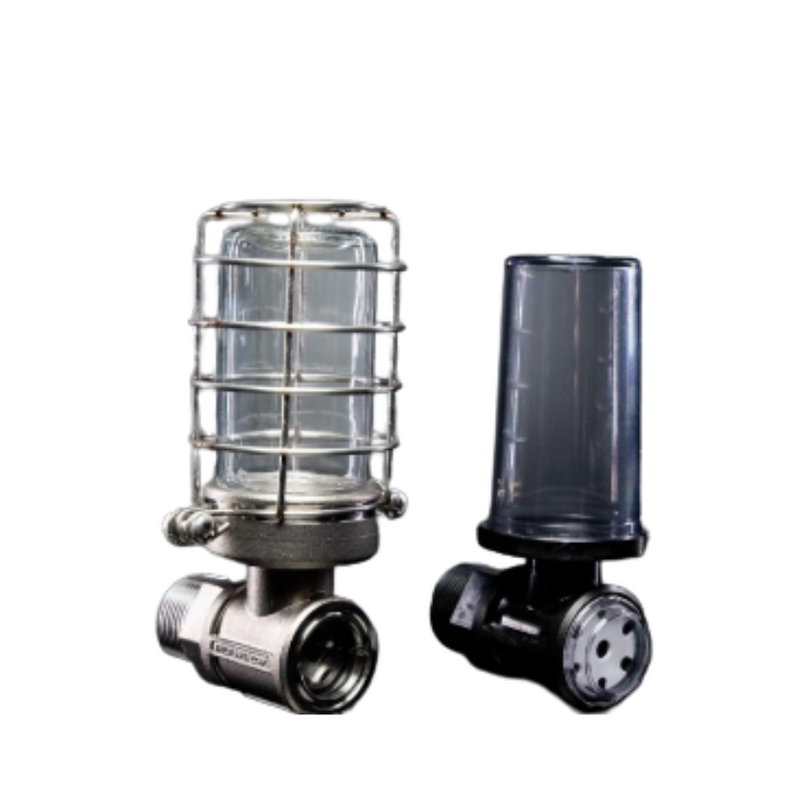

TRICO Watchdog Oilers
The Trico Watchdog Oiler is a constant level oiler designed for maintaining the correct oil level in rotating equipment and machinery. Available in polysulfone, aluminum with glass reservoir, and 316 stainless steel body configurations, with a range of connection types and optional wire guard protection to suit varied installation requirements.
Model Variants
| Model | Material | Connection | Wire Guard | Capacity | A Dim (in) - Height | B Dim (in) - Length | C Dim (in) - Viewport |
| 31804 | Polysulfone Body and Reservoir | 1 NPT | No | 4 oz | 5-3/4 | 3-9/32 | 1 |
| 31818 | Aluminum Body, Glass Reservoir | 1/2 NPT | No | 4 oz | 6-1/4 | 4-1/8 | 1/2 |
| 31820 | Aluminum Body, Glass Reservoir | 3/4 NPT | No | 4 oz | 6-1/4 | 3-1/4 | 3/4 |
| 31821 | Aluminum Body, Glass Reservoir | 1 NPT | No | 4 oz | 6-1/4 | 3-1/4 | 1 |
| 31822 | Aluminum Body, Glass Reservoir | 3/4 BSPT | No | 4 oz | 6-1/4 | 4-1/8 | 3/4 |
| 31823 | Aluminum Body, Glass Reservoir | 1 BSPT | No | 4 oz | 6-1/4 | 3-1/4 | 1 |
| 31824 | Aluminum Body, Glass Reservoir | 3/4 NPT | Yes | 4 oz | 6-1/2 | 3-3/8 | 3/4 |
| 31825 | Aluminum Body, Glass Reservoir | 1 NPT | Yes | 4 oz | 6-1/2 | 3-3/8 | 1 |
| 31826 | Aluminum Body, Glass Reservoir | 3/4 BSPT | Yes | 4 oz | 6-1/2 | 4-1/8 | 3/4 |
| 31827 | Aluminum Body, Glass Reservoir | 1 BSPT | Yes | 4 oz | 6-1/2 | 3-3/8 | 1 |
| 31828 | Aluminum Body, Glass Reservoir | 1/2 NPT | Yes | 4 oz | 6-1/2 | 4-1/8 | 1/2 |
| 31831 | 316 Stainless Steel Body, Glass Reservoir | 1 NPT | No | 4 oz | 6-1/4 | 3-1/4 | 1 |
| 31833 | 316 Stainless Steel Body, Glass Reservoir | 1 NPT | Yes | 4 oz | 6-1/2 | 3-3/8 | 1 |
The information contained in this data sheet is based on data considered to be accurate. No warranty is expressed or implied regarding the accuracy of this data. Product specifications and availability are subject to change without notice. Lube Control Pty Ltd accepts no responsibility for any loss or damage arising from the use of this information.
Ā
Out of stock ? / Ordering a large item?
Contact our team to confirm availability, delivery options, and customised freight costs for oversized or heavy products before placing your order.
sales@lubecontrol.com.au
1300 917 946
+61 8 8298 5563
Technical Documents
Watchdog Oiler Instruction
Download PDF
Watchdog Stainless Steel inst sheet
Download PDF
