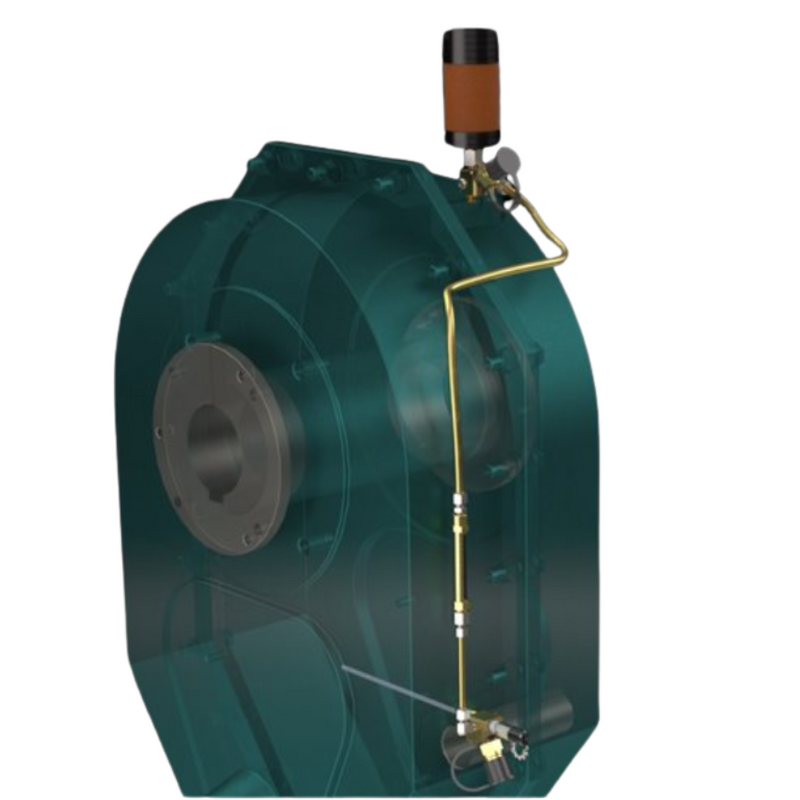

TRICO Dodge Gearbox Kits (P.O.A)
The Trico Gearbox Installation Kit is designed to adapt to a variety of manufactured gearbox types and mounting positions. Each kit provides proper oil level identification via a liquid level gauge, reduces contamination through desiccant breather filtration, includes quick disconnect ports for in-service filtration, and features an oil sampling port designed for high viscosity oils. Available in three NPT connection sizes to suit different gearbox port threading.
Model Selection
| 40017 — Gearbox Kit #7 | 3/4" NPT Connections |
| 40018 — Gearbox Kit #5 | 1/2" NPT Connections |
| 40019 — Gearbox Kit #3 | 3/8" NPT Connections |
Kit Contents
| Item 1 | Gearbox Multi Component Fitting, 3/4" NPTM (qty 2) |
| Item 2 | 3/8" Tube × 1/4" Male NPT Brass 90° Compression Elbow (qty 2) |
| Item 3 | Brass 1/2" NPT Close Nipple (qty 2) |
| Item 4 | Quick Disconnect, 1/2" Plug, Double Shut-Off, Brass (qty 2) |
| Item 5 | Stainless Steel, 1/4 Pipe Size, Hex-Socket Plug (qty 2) |
| Item 6 | Watchdog Desiccant Breather Adapter, 1/4" MNPT × 3/8" FNPT (qty 1) |
| Item 7 | Straight Adapter, 3/8" Tube OD × 3/8 Female Pipe (qty 1) |
| Item 8 | 3/8" Tube × 1/8" NPTM Compression Fitting (qty 1) |
| Item 9 | Brass Tubing, 3/8" OD × .311" ID × .032" Wall — 36" length (qty 1) |
| Item 10 | Liquid Level Gauge, Sight Glass — 7.5", 5.5", or 3.5" × 5/8" OD (qty 1) |
| Item 11 | Pitot Tube, 1/4 NPTM Fx 12 SST (qty 1) |
| Item 12 | Watchdog Desiccant Breather, Gold 5.59"H × 2.54" DIA, 5CFM EX Check Valve, 3/8" Tri-fit (qty 1) |
Features & Benefits
| •Adaptable to a wide variety of gearbox types, mounting positions and port orientations |
| •Liquid level gauge provides clear, accurate visual identification of proper oil level during operation |
| •Watchdog desiccant breather reduces contamination by filtering airborne particles and moisture from incoming air |
| •Quick disconnect ports at breather and drain locations allow in-service filtration without downtime |
| •Pitot tube oil sampling port positioned in the turbulent oil zone for accurate high viscosity oil sampling during operation |
| •Multi Component Fittings feature three 1/4" NPTF connections allowing flexible installation orientation to suit any gearbox casting |
| •Available in 3/4", 1/2", and 3/8" NPT connection sizes — select kit number based on sight glass size and gearbox port threading |
The information contained in this data sheet is based on data considered to be accurate. No warranty is expressed or implied regarding the accuracy of this data. Product specifications and availability are subject to change without notice. Lube Control Pty Ltd accepts no responsibility for any loss or damage arising from the use of this information.
