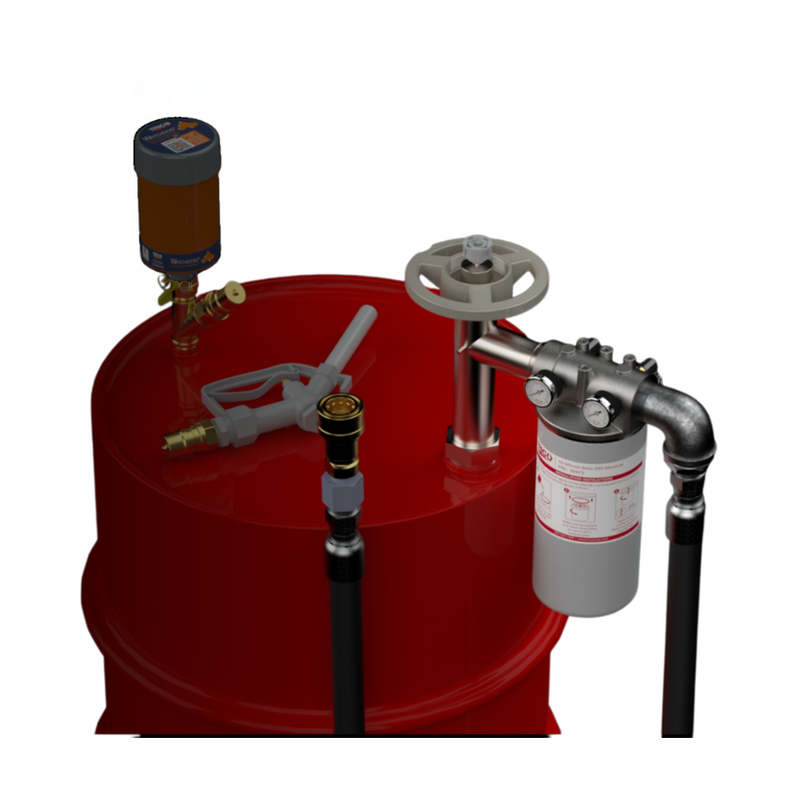

TRICO Drum Pump Recirculation Kit (P.O.A)
The Trico Drum Pump Recirculation Kit (Part #30032) is designed to directly filter and recirculate lubricants from a standard 55-gallon drum back into the same drum, handling lubricants with a viscosity of 1250 cSt (5500 SUS) and below. Used in conjunction with the Trico Drum Pump Filtration System (P/N 30035) and a compatible drum pump motor, oil can be filtered continuously for as long as required with this self-contained kit. The kit also allows the system to be quickly converted back to normal dispensing use via the included plug connection.
Technical Specifications
| Part Number | 30032 |
| Compatible Drum Size | Standard 55-gallon drum |
| Maximum Fluid Viscosity | 1250 cSt (5500 SUS) |
| Minimum Filtration Level (Higher Viscosity Oil) | 10 microns |
| Minimum Filtration Level (Hydraulic Oil) | 3 microns at room temperature |
| Required Assembly Tool | 2 x 2.5" adjustable wrenches or pipe wrenches |
Included Components
| •(A) Watchdog EX Breather |
| •(B) Male Quick Coupler Hose Connector |
| •(C) Plug Connection for Equipment / Dispensing Nozzle |
| •(D) Ball Valve / Wye Fitting / Plug Connector / Drum Adapter Assembly |
Required Items (Sold Separately)
| 30035 | Drum Pump Filtration System |
| 30018 | Drum Pump Electric Motor, 1.1Hp, 110–120V, 50/60 Hz |
| 30021 | Drum Pump Electric Motor, 1.1Hp, 220–230V, 50/60 Hz |
| 30019 | Drum Pump Pneumatic Motor, 3/4 HP |
Features
| •Filters and recirculates lubricant directly within the same 55-gallon drum — no additional container required |
| •Compatible with lubricants up to 1250 cSt (5500 SUS) viscosity |
| •Hydraulic oils can be filtered down to 3 microns at room temperature |
| •Includes Watchdog EX Breather to protect drum contents from moisture and airborne contaminants |
| •Ball valve on drum adapter assembly prevents back flow of oil to the desiccant breather during recirculation |
| •Plug Connection (C) allows quick conversion back to normal dispensing use or direct equipment connection |
| •Motor is interchangeable with different Trico Drum Pump Filtration System designs — one motor can be used across multiple drum pumps |
| •When filtering higher viscosity oils such as ISO 460 and ISO 680, use of a drum heating blanket is required to reduce viscosity to within system limits |
Bu veri formunda yer alan bilgiler, doğru olduğu düşünülen verilere dayanmaktadır. No warranty is expressed or implied regarding the accuracy of this data. Product specifications and availability are subject to change without notice. Lube Control Pty Ltd accepts no responsibility for any loss or damage arising from the use of this information.
Technical Documents
TRICO Drum Pump Recirculation Kit
Download PDFDisclaimer
Technical specifications may change. Please confirm with the manufacturer.
