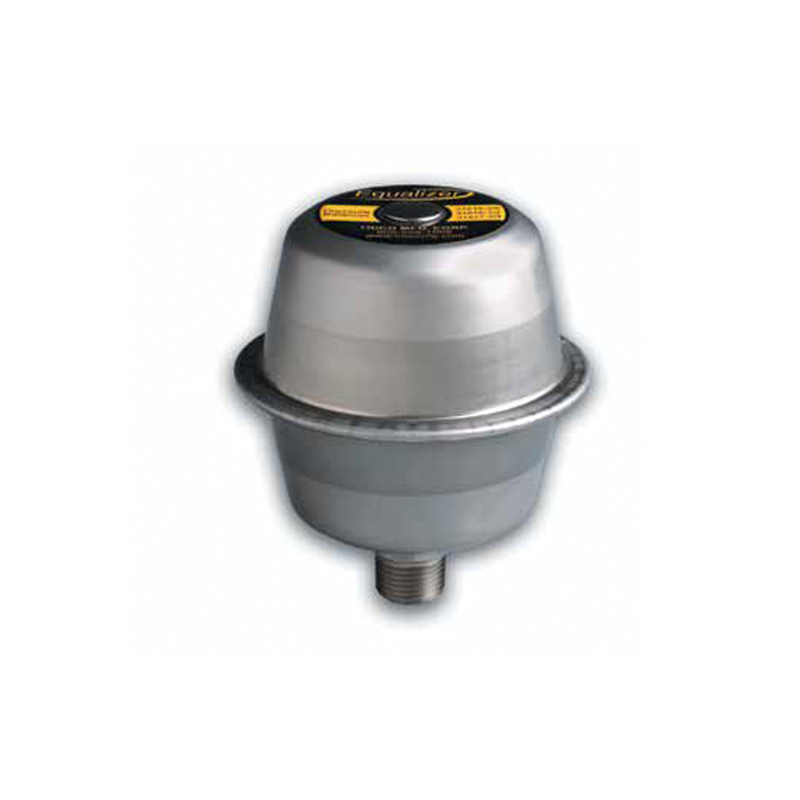

Trico - Expansion Chamber
Trico Equalizer Expansion Chambers are designed to absorb surges and prevent pressure build-up in closed systems. A rolling Viton diaphragm provides a variable volume that, when properly sized, maintains oil housing pressure at or near zero PSI — extending seal life and helping prevent leakage. The stainless steel body also protects the integrity of closed systems by eliminating the exchange of air between the chamber and the surrounding atmosphere. Available in four models with thread sizes from 3/8" to 3/4" NPT, including a vent hole variant for specific installations.
Technical Specifications
| Body Material | Stainless Steel |
| Diaphragm Material | Viton® |
| Maximum Operating Temperature | 375°F |
| Expansion Capacity | 25 cu in |
| Overall Width | 4 1/16" |
| Overall Height (excl. thread) | 3 3/4" |
Available Models
| 31815 | Expansion Chamber — 3/8" NPT — Dim A: 7/8" |
| 31816 | Expansion Chamber — 1/2" NPT — Dim A: 1" |
| 31817 | Expansion Chamber — 3/4" NPT — Dim A: 1-1/4" |
| 31835 | Expansion Chamber with Vent Hole — 1/2" NPT — Dim A: 1" (vent hole must face down when installed) |
Features
| •Corrosion resistant stainless steel body |
| •Rolling Viton diaphragm maintains housing pressure at or near zero PSI to extend seal life |
| •Prevents contamination ingression to help lubricants stay cleaner for longer life and improved performance |
| •Full 25 cubic inch air expansion capability |
| •Maintenance free operation |
| •Multiple thread sizes available — 3/8", 1/2" and 3/4" NPT — for flexible installation across a wide range of equipment |
The information contained in this data sheet is based on data considered to be accurate. No warranty is expressed or implied regarding the accuracy of this data. Product specifications and availability are subject to change without notice. Lube Control Pty Ltd accepts no responsibility for any loss or damage arising from the use of this information.
