TRICO Filter Media - Hand Held System
The Trico Hand-Held System Filter Media – 3 Micron Particulate (Part No. 36976) is a spin-on replacement filter element designed for use with the Trico Low-Viscosity and High-Viscosity Hand-Held Filtration Systems. Constructed with Synthetic Micro-Glass media and rated Beta 3 ≥200 Absolute, it delivers high-efficiency particulate removal with a dirt holding capacity of 41 grams. Replace filter element at regular service intervals, not to exceed 250 hours of use, or when the differential pressure between gauges reaches 40 psi.
Technical Specifications
| Part Number | 36976 |
| Filter Type | Particulate – Spin-On |
| Micron Rating | 3 Micron |
| Media Type | Synthetic Micro-Glass |
| Beta Ratio | Beta 3 ≥200 Absolute |
| Diameter | 3.7" |
| Length | 8" |
| Thread | 1 1/2-16 UN-2B |
| Dirt Holding Capacity | 41 grams |
| Replace At | 40 psi differential or 250 hours of use (whichever comes first) |
Compatible Systems
| •Trico Low-Viscosity Hand-Held Filtration System (P/N 36994) |
| •Trico High-Viscosity Hand-Held Filtration System (P/N 36971 / 36934) |
The Trico Hand-Held System Filter Media – 10 Micron Particulate (Part No. 36977) is a spin-on replacement filter element designed for use with the Trico Low-Viscosity and High-Viscosity Hand-Held Filtration Systems. Constructed with Synthetic Micro-Glass media and rated Beta 10 ≥200 Absolute, it provides high-efficiency particulate removal with a dirt holding capacity of 48 grams. Replace filter element at regular service intervals, not to exceed 250 hours of use, or when the differential pressure between gauges reaches 40 psi.
Technical Specifications
| Part Number | 36977 |
| Filter Type | Particulate – Spin-On |
| Micron Rating | 10 Micron |
| Media Type | Synthetic Micro-Glass |
| Beta Ratio | Beta 10 ≥200 Absolute |
| Diameter | 3.7" |
| Length | 8" |
| Thread | 1 1/2-16 UN-2B |
| Dirt Holding Capacity | 48 grams |
| Replace At | 40 psi differential or 250 hours of use (whichever comes first) |
Compatible Systems
| •Trico Low-Viscosity Hand-Held Filtration System (P/N 36994) |
| •Trico High-Viscosity Hand-Held Filtration System (P/N 36971 / 36934) |

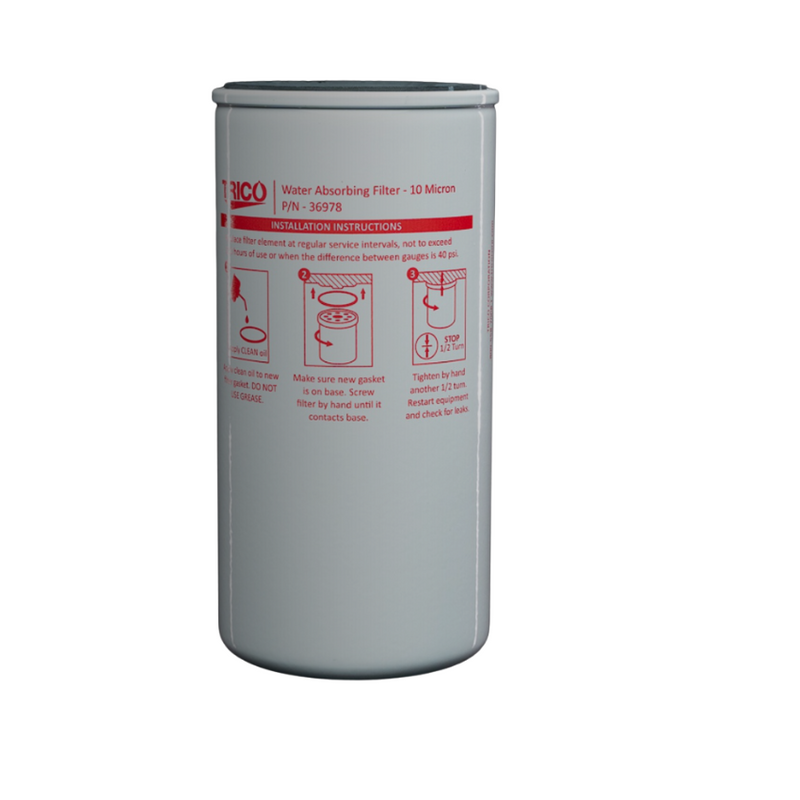

The Trico Hand-Held System Filter Media – 10 Micron Water (Part No. 36978) is a spin-on replacement water removal filter element designed for use with the Trico Low-Viscosity and High-Viscosity Hand-Held Filtration Systems. Rated at 10 Micron Nominal, it removes free water from lubricating and hydraulic oils with a water holding capacity of up to 8 oz (based on flow rate and viscosity). Replace filter element at regular service intervals, not to exceed 250 hours of use, or when the differential pressure between gauges reaches 40 psi.
Technical Specifications
| Part Number | 36978 |
| Filter Type | Water Removal – Spin-On |
| Micron Rating | 10 Micron Nominal |
| Media Type | N/A |
| Diameter | 3.7" |
| Length | 8" |
| Thread | 1 1/2-16 UN-2B |
| Water Holding Capacity | 8 oz (based on flow rate and viscosity) |
| Replace At | 40 psi differential or 250 hours of use (whichever comes first) |
Compatible Systems
| •Trico Low-Viscosity Hand-Held Filtration System (P/N 36994) |
| •Trico High-Viscosity Hand-Held Filtration System (P/N 36971 / 36934) |
The information contained in this data sheet is based on data considered to be accurate. No warranty is expressed or implied regarding the accuracy of this data. Product specifications and availability are subject to change without notice. Lube Control Pty Ltd accepts no responsibility for any loss or damage arising from the use of this information.
