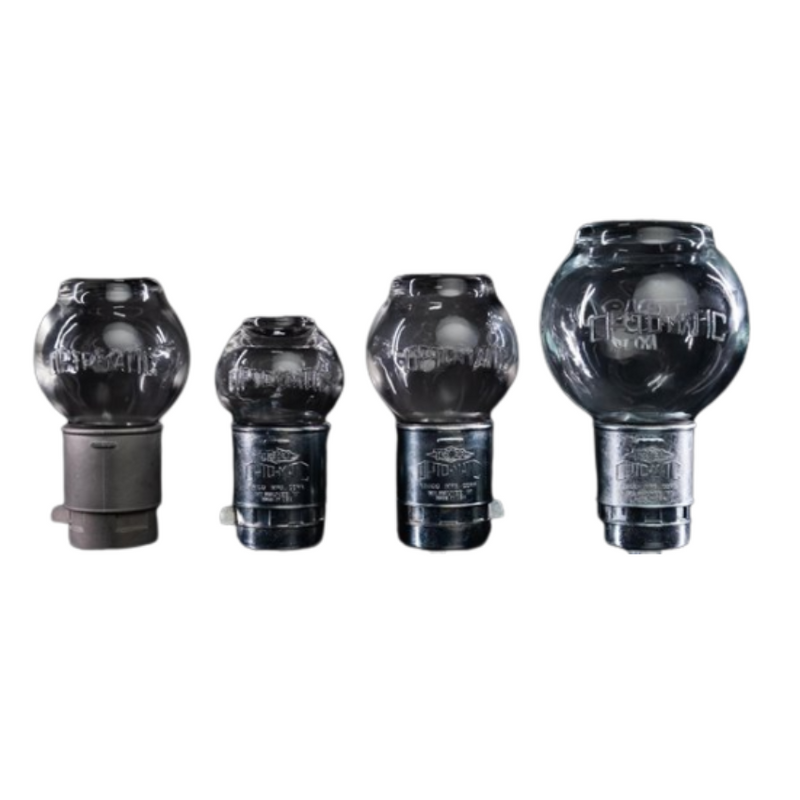

TRICO Opto Matic Oiler (Glass)
Constant level oilers have been utilised on rotating equipment for more than 90 years and remain the most effective and widely used method of maintaining the proper oil level in process and rotating equipment that depletes lubricant through use, wear, and friction. The Trico Opto-Matic Oiler with one-piece glass bottle reservoir is simple in design with no moving parts, following the most basic principles of fluid dynamics. Once the proper level has been set, replacing the oil in the reservoir is the only required maintenance.
Specifications
| Max. Operating Temperature | 250°F Continuous |
| Reservoir | One-Piece Glass Bottle |
| Casting | Standard – Zinc Stainless Steel – 316 Stainless Steel |
| Finish | Standard – Zinc/Chromate Plated 316 Stainless Steel |
| Internal Parts | Zinc Plated Steel |
| O-Ring | Viton® |
Features
| •Proven design with over 90 years of use on rotating and process equipment worldwide |
| •Maintains the correct oil level in equipment that depletes lubricant through use, wear, and friction |
| •No moving parts — operates on basic fluid dynamics principles for exceptional reliability |
| •Minimal maintenance required — only reservoir refilling once the oil level has been set |
| •One-piece glass bottle reservoir rated to 250°F continuous for high-temperature applications |
| •Available in standard zinc/chromate plated or 316 stainless steel construction for corrosive environments |
| •Viton® O-ring sealing for compatibility with a wide range of lubricants |
| Model | Description | Material | Capacity | Connection | Dim A (in) - Width | Dim B (min) - Height | Dim B (max) - Height | Dim C (in) - Oil Level Range |
|---|---|---|---|---|---|---|---|---|
| 30003 | Opto-Matic | Zinc Plated | 4 oz | 1/4 NPT | 2-11/16 | 5 | 5-3/4 | 9/32 - 1 |
| 30005 | Opto-Matic | Zinc Plated | 8 oz | 1/4 NPT | 3-3/16 | 5-15/16 | 6-11/16 | 9/32 - 1 |
| 30010 | Opto-Matic | Zinc Plated | 16 oz | 1/4 NPT | 4-1/8 | 6-13/16 | 7-9/16 | 9/32 - 1 |
| 30213 | Opto-Matic | Stainless Steel | 4 oz | 1/4 NPT | 2-11/16 | 4-15/16 | 5-11/16 | 9/32 - 1 |
| 30215 | Opto-Matic | Stainless Steel | 8 oz | 1/4 NPT | 3-3/16 | 5-7/8 | 6-5/8 | 9/32 - 1 |
| 30220 | Opto-Matic | Stainless Steel | 16 oz | 1/4 NPT | 4-1/8 | 6-3/4 | 7-1/2 | 9/32 - 1 |
The information contained in this data sheet is based on data considered to be accurate. No warranty is expressed or implied regarding the accuracy of this data. Product specifications and availability are subject to change without notice. Lube Control Pty Ltd accepts no responsibility for any loss or damage arising from the use of this information.
