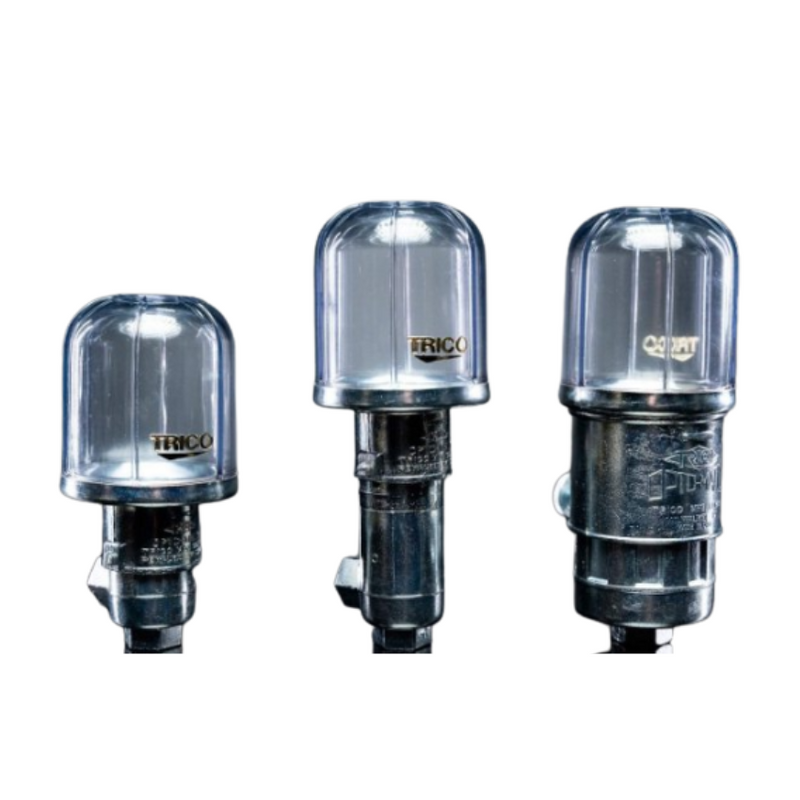

TRICO Opto Matic Oiler - Plastic
The Trico Opto-Matic Oiler with plastic reservoir provides a constant level of oil in pump bearing housings, gear boxes, and other oil sump applications. Throughout processing industries, the Opto-Matic oiler is the industry standard for reliable constant-level lubrication. Different reservoir capacities allow for use across a wide range of equipment and applications.
Specifications
| Max. Operating Temperature | 165°F Continuous |
| Reservoir | Butyrate Plastic |
| Casting | Zinc Die Cast |
| Finish | Bright Zinc Plated |
| Internal Parts | Zinc Plated Steel |
Features
| •Maintains a constant oil level in pump bearing housings, gear boxes, and oil sump applications |
| •Industry standard constant-level oiler across processing industries worldwide |
| •Butyrate plastic reservoir provides clear visual oil level monitoring |
| •Zinc die cast construction with bright zinc plated finish for corrosion resistance |
| •Zinc plated steel internal parts for durability in continuous service |
| •Available in multiple reservoir capacities to suit a wide range of equipment applications |
| Model | Description | Style | Capacity | Connection (NPT) | Dim A (in) - Width | Dim B (min) - Height | Dim B (max) - Height | Dim C (in) - Oil Level Range |
|---|---|---|---|---|---|---|---|---|
| 30024 | Opto-Matic | Type LS | 4 oz | 1/4 | 2-5/16 | 5-7/16 | 6-3/16 | 9/32 - 1 |
| 30028 | Opto-Matic | Type LS | 8 oz | 1/4 | 2-5/8 | 6-9/16 | 7-5/16 | 9/32 - 1 |
| 30052 | Opto-Matic | Type E | 2 oz | 1/4 | 1-15/16 | 3-7/8 | 4-3/8 | 1/4 - 3/4 |
| 30054 | Opto-Matic | Type E | 4 oz | 1/4 | 2-5/16 | 4-9/16 | 5-1/16 | 1/4 - 3/4 |
| 30058 | Opto-Matic | Type E | 8 oz | 1/4 | 2-5/8 | 5-11/16 | 6-3/16 | 1/4 - 3/4 |
| 30062 | Opto-Matic | Type EB | 2 oz | 1/4 | 1-15/16 | 3-7/8 | 4-3/8 | 1/4 - 3/4 |
| 30064 | Opto-Matic | Type EB | 4 oz | 1/4 | 2-5/16 | 4-9/16 | 5-1/16 | 1/4 - 3/4 |
| 30068 | Opto-Matic | Type EB | 8 oz | 1/4 | 2-5/8 | 5-11/16 | 6-3/16 | 1/4 - 3/4 |
| 30074 | Opto-Matic | Type EH | 4 oz | 1/4 | 2-5/16 | 5-11/16 | 6-3/16 | 1/4 - 3/4 |
| 30078 | Opto-Matic | Type EH | 8 oz | 1/4 | 2-5/8 | 6-13/16 | 7-5/16 | 1/4 - 3/4 |
| 30082 | Opto-Matic | Type EHB | 2 oz | 1/4 | 1-15/16 | 5 | 5-1/2 | 1/4 - 3/4 |
| 30084 | Opto-Matic | Type EHB | 4 oz | 1/4 | 2-5/16 | 5-11/16 | 6-3/16 | 1/4 - 3/4 |
| 30088 | Opto-Matic | Type EHB | 8 oz | 1/4 | 2-5/8 | 6-13/16 | 7-5/16 | 1/4 - 3/4 |
