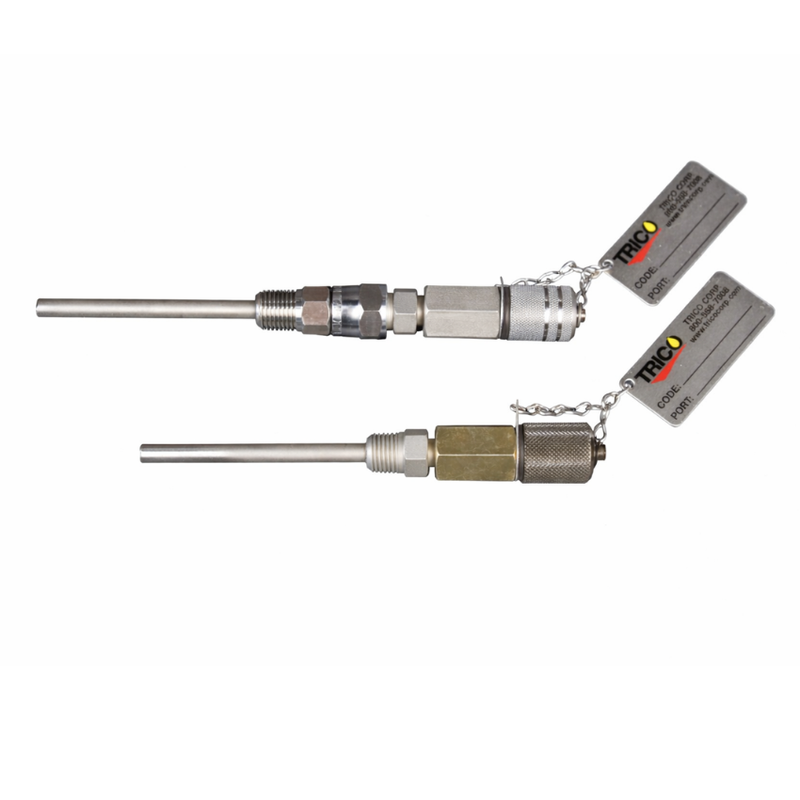

Trico Sample Port And Pitot Tube , Swivel Adapter
Trico Pitot Tube Sample Ports with Swivel Adapter provide a safe, simple and effective method of sampling fluids from rotating equipment and sumps. Designed to extract oil samples from the turbulent zone in a repeatable and efficient manner, the thick wall tubing can be bent and directed to the ideal sampling location. The integrated swivel adapter allows for flexible positioning and precise alignment across a wide range of installation configurations.
Specifications
| Maximum Pressure | 500 PSI (34.5 bar) |
| Material | Carbon Steel or Stainless Steel |
| Check Valve Ball | Stainless Steel |
| Seal | Viton® |
| Maximum Operating Temperature | -4°F to 392°F |
Features
| •Swivel adapter enables precise directional positioning to reach the optimal sampling location |
| •Samples fluid from the turbulent zone for accurate and representative oil analysis results |
| •Thick wall stainless steel tubing can be bent and directed to the ideal sampling location |
| •Suitable for use on rotating equipment and sumps |
| •1/4" NPT male fitting for easy integration with standard sampling hardware |
| •Available in Carbon Steel or Stainless Steel port materials to suit different fluid compatibility requirements |
| •Available in 12", 18" and 24" tube lengths |
Model Variants
| Model | Tube Length | Swivel Adapter | Port Material | Tube Material | Fitting (NPT Male) |
| 36217 | 12" | Yes | Carbon Steel | Stainless Steel | 1/4" |
| 36219 | 12" | Yes | Stainless Steel | Stainless Steel | 1/4" |
| 36220 | 18" | Yes | Carbon Steel | Stainless Steel | 1/4" |
| 36222 | 18" | Yes | Stainless Steel | Stainless Steel | 1/4" |
| 36223 | 24" | Yes | Carbon Steel | Stainless Steel | 1/4" |
| 36225 | 24" | Yes | Stainless Steel | Stainless Steel | 1/4" |
The information contained in this data sheet is based on data considered to be accurate. No warranty is expressed or implied regarding the accuracy of this data. Product specifications and availability are subject to change without notice. Lube Control Pty Ltd accepts no responsibility for any loss or damage arising from the use of this information.
