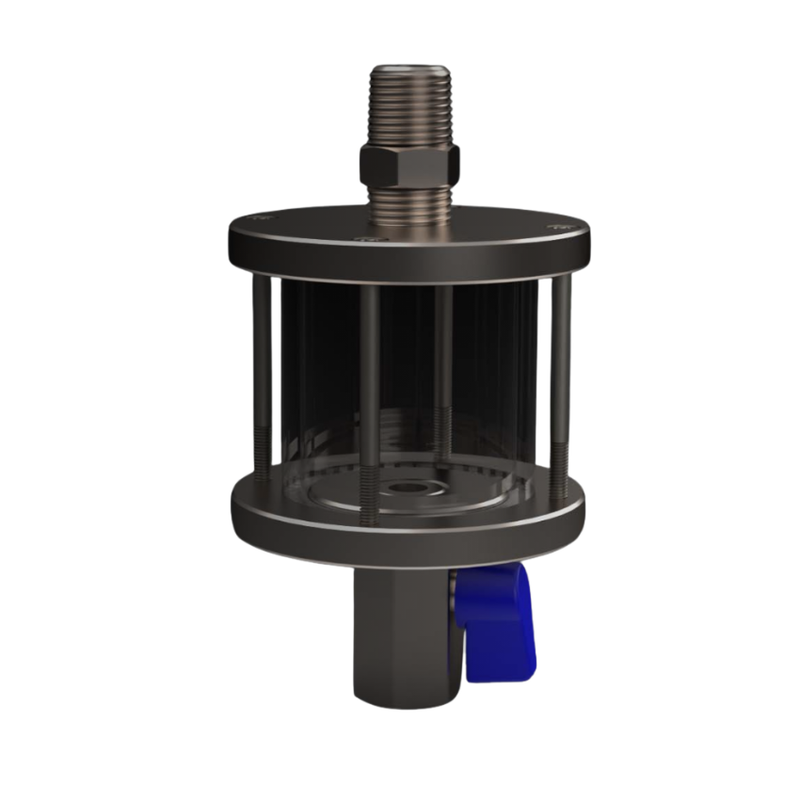

TRICO Sump Bottle - Ball Valve
Trico Sump Bottles with Ball Valve Drain provide reliable oil level monitoring with easy, controlled draining capability. Available in 2 oz and 5 oz capacities with centered or offset valve styles, the borosilicate Pyrex reservoir delivers clear visibility of oil level and condition. Stainless steel construction and 1/2" NPT connection make these suitable for demanding lubrication monitoring applications.
Product Specifications
| Operating Temperature | −40°F (−40°C) to 225°F (107°C) |
| Reservoir | Borosilicate — Pyrex |
| Gasket | Buna-N |
| Materials | Stainless Steel |
| Connection | 1/2" NPT |
Model Selection
| 31400 | Ball Valve Drain, Centered | 1/2" NPT | 2 oz | H: 5.77" | D: 3.00" |
| 31402 | Offset Ball Valve Drain | 1/2" NPT | 2 oz | H: 5.77" | D: 3.00" |
| 31405 | Ball Valve Drain, Centered | 1/2" NPT | 5 oz | H: 6.26" | D: 3.50" |
| 31407 | Offset Ball Valve Drain | 1/2" NPT | 5 oz | H: 6.26" | D: 3.50" |
Features & Benefits
| •Ball valve drain for easy and controlled oil drainage |
| •Available in 2 oz and 5 oz capacities with centered or offset valve styles to suit different installation requirements |
| •Borosilicate Pyrex reservoir provides clear visibility of oil level and condition |
| •Stainless steel construction for corrosion resistance and long service life |
| •Wide operating temperature range of −40°C to 107°C for use in demanding environments |
The information contained in this data sheet is based on data considered to be accurate. No warranty is expressed or implied regarding the accuracy of this data. Product specifications and availability are subject to change without notice. Lube Control Pty Ltd accepts no responsibility for any loss or damage arising from the use of this information.
Technical Documents
TRICO Sump Bottle Ball Valve
Download PDFOut of stock?
Contact our team to confirm availability and delivery options.
