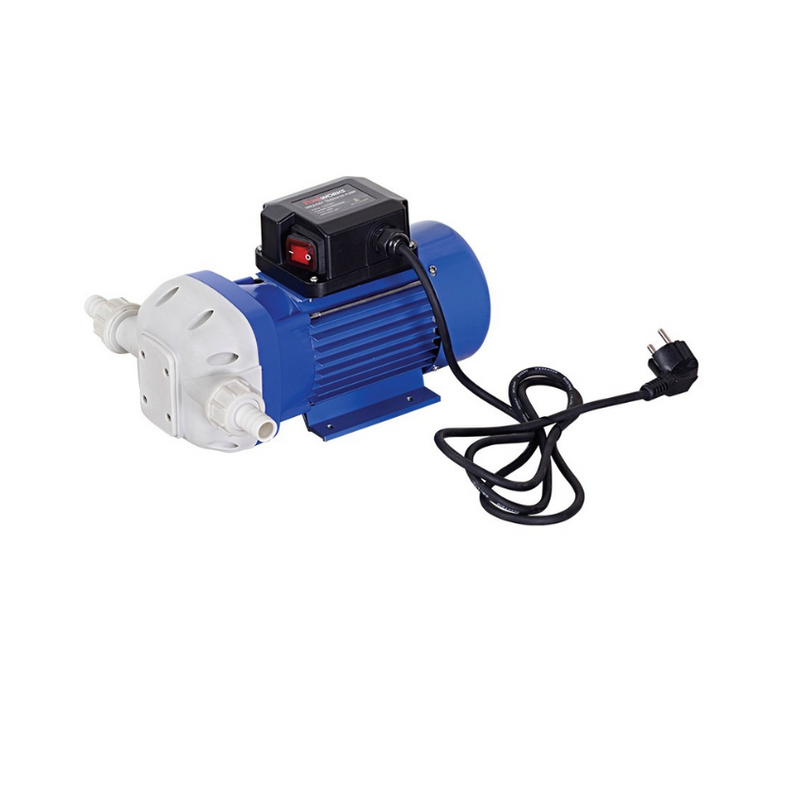

UREA /Def Transfer AC Pump (240V)
The STM UREA/DEF AC Transfer Pump DITI17350250 is a self-priming, volumetric diaphragm pump designed for the safe and efficient transfer of UREA/DEF, weak acid and weak alkaline fluids, and water. Running on single-phase AC 230V at 50Hz and delivering 25 LPM, it features a built-in by-pass valve and an IP55-rated motor for reliable continuous operation in workshop and fleet environments.
Product Specifications
| Model | DITI17350250 |
| Current | AC |
| Voltage | 230V |
| Frequency | 50 Hz |
| Power | 300 W |
| Flow Rate | 25 LPM |
| Inlet/Outlet | 3/4" |
| Pump Type | Self-priming, volumetric, diaphragm with by-pass valve |
| Motor Type | Asynchronous, single-phase, 2 pole, IP55 self-ventilated |
| Working Cycle | Continuous (by-pass max 2–3 minutes) |
| Operating Temperature | −10°C (14°F) to +60°C (140°F) |
| Relative Humidity | Max 90% |
| Noise Level | ≤75 dB(A) at 1 metre |
| Permitted Fluids | UREA/DEF, weak acid & weak alkaline fluids, water |
Features & Benefits
| •25 LPM flow rate on AC 230V single-phase power for efficient UREA/DEF transfer |
| •Self-priming diaphragm pump with by-pass valve — reliable start-up and pump protection |
| •IP55-rated asynchronous single-phase motor — closed, self-ventilated for continuous operation |
| •Suitable for UREA/DEF, weak acid and weak alkaline fluids, and water |
| •Suction and delivery tubing: min. 3/4" nominal diameter at 10 bar / 145 PSI recommended |
| •Designed for continuous use — low maintenance construction with inspectable components |
The information contained in this data sheet is based on data considered to be accurate. No warranty is expressed or implied regarding the accuracy of this data. Product specifications and availability are subject to change without notice. Lube Control Pty Ltd accepts no responsibility for any loss or damage arising from the use of this information.
