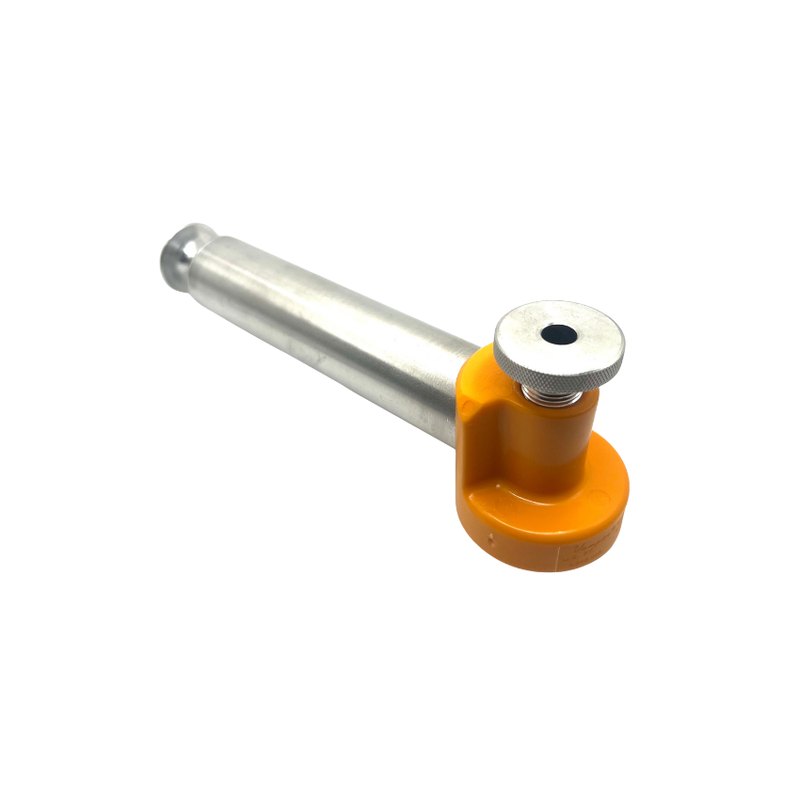

Putz Vacuum Pump Standard (Oil Sampling)
The Pütz Oil Sampling Vacuum Pump is a compact, portable tool for extracting clean and representative oil samples from sumps or sample ports in the harshest environments. When used with a sample port adapter, flexible tubing and a clean sample bottle, it provides contamination-free oil sampling from any sample port. Lube Control offers two models — the Standard pump and the Heavy Duty pump with release valve — along with a full range of compatible accessories including sample bottles, transparent nylon tubing, and a prepaid sample analysis kit.
Vacuum Pump Models
| VACPUMP-ST | Vacuum Pump Standard — suits 6mm (1/4") to 8mm (5/16") tubing, 38mm bottle neck |
| VACPUMP-HD | Vacuum Pump Heavy Duty with Release Valve — suits 6mm (1/4") to 8mm (5/16") tubing, 38mm bottle neck |
Compatible Accessories
| VACBOTTLE120 | Standard sampling bottle, 120ml (4 oz), 38mm neck |
| VACBOTTLE473 | Purge bottle, 473ml (16 oz), 38mm neck |
| NYLONTUBE6MM/□□□M | 6mm transparent nylon tubing — available in 20m, 50m or 100m rolls (insert length in part number, e.g. NYLONTUBE6MM/20M) |
| NYLONTUBE8MM/□□□M | 8mm transparent nylon tubing — available in 20m, 50m or 100m rolls (insert length in part number, e.g. NYLONTUBE8MM/20M) |
| PPOSK | Pre-Paid Oil Sample Kit — includes sample bottle, sample tube, and basic oil analysis results from Bureau Veritas |
Features
| •Extracts clean and representative oil samples from sumps or sample ports — suitable for the harshest environments |
| •Compact and portable for ease of transport between equipment and sites |
| •Contamination-free sampling when used with a sample port adapter and a clean sample bottle |
| •Heavy Duty model (VACPUMP-HD) includes a release valve for controlled sample extraction |
| •Compatible with 6mm (1/4") and 8mm (5/16") transparent nylon tubing and standard 38mm neck sample bottles |
Typical Applications
| •Hydraulic reservoirs |
| •Gearboxes and bearing housings |
| •Compressors and turbines |
| •Lubrication systems in mobile and industrial equipment |
For sample port adapters and additional accessories, contact Lube Control Pty Ltd on 1300 917 946 or sales@lubecontrol.com.au.
Out of stock ? / Ordering a large item?
Contact our team to confirm availability, delivery options, and customised freight costs for oversized or heavy products before placing your order.
sales@lubecontrol.com.au
1300 917 946
+61 8 8298 5563
Technical Documents
Putz Oil Sampling Vacuum Pumps
Download PDF
