X Outlet Distributor Kit with 8mm nylon tube and compression fittings

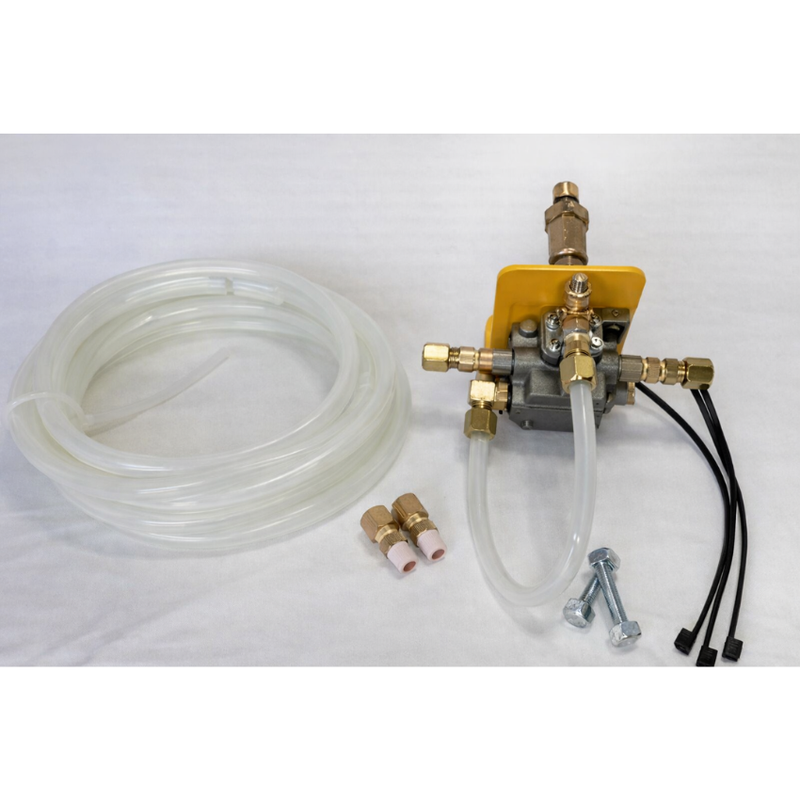

The 2-Outlet Distributor Kit (MA029/2) is a complete, ready-to-install grease distribution solution designed for centralised lubrication systems with two lube points. Built around a 4-outlet progressive distributor block, this kit includes all hose, fittings, mounting hardware and cable ties needed to get your system up and running quickly. Ideal for light machinery, agricultural equipment and any application requiring reliable, even grease distribution to two points.
Technical Specifications
| Order Code | MA029/2 |
| Number of Outlets | 2 |
| Distributor Block | 4-Outlet Progressive (P# ARU-4R) |
| Nylon Hose | 14m x 8mm OD (P# MET-G14) |
| Compression Fittings | 5 x 1/8 BSP (P# BB188M) |
| Cable Ties | 6 x 200mm (P# CT200-6) |
Kit Contents
| ā¢1 x 4-outlet progressive distributor block ā P# ARU-4R |
| ā¢1 x Remote powder coated safety yellow mounting bracket ā P# MA001/0 |
| ā¢2 x M8 mounting screws with nyloc nuts ā P# BB830MM & B830MM |
| ā¢1 x Line priming nipple ā P# BB18SN |
| ā¢6 x 200mm long cable ties ā P# CT200-6 |
| ā¢1 x 1/8 BSP female tee ā P# BB18FT |
| ā¢14m x 8mm OD nylon hose ā P# MET-G14 |
| ā¢5 x 1/8 BSP compression fittings ā P# BB188M |
| ā¢2 x Cross porting elements ā P# MACPES |
| ā¢1 x Inline check valve ā P# HPS-CHV |

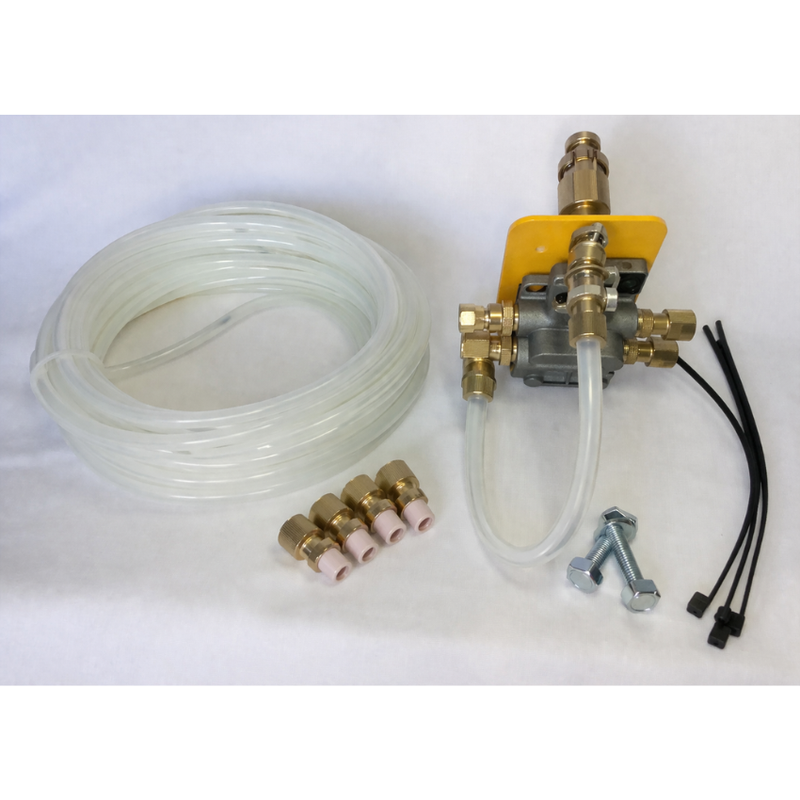

The 4-Outlet Distributor Kit (MA029/4) provides a complete centralised lubrication solution for machinery with four grease points, supplied with everything needed for a straightforward, professional installation. Built around a 4-outlet progressive distributor block, the kit includes 22 metres of 8mm OD nylon hose, nine compression fittings, an inline check valve and all mounting hardware. Designed for agricultural, construction and industrial equipment requiring reliable, consistent grease delivery across four lubrication points.
Technical Specifications
| Order Code | MA029/4 |
| Number of Outlets | 4 |
| Distributor Block | 4-Outlet Progressive (P# ARU-4R) |
| Nylon Hose | 22m x 8mm OD (P# MET-G22) |
| Compression Fittings | 9 x 1/8 BSP (P# BB188M) |
| Cable Ties | 12 x 200mm (P# CT200-12) |
Kit Contents
| ā¢1 x 4-outlet progressive distributor block ā P# ARU-4R |
| ā¢1 x Remote powder coated safety yellow mounting bracket ā P# MA001/0 |
| ā¢2 x M8 mounting screws with nyloc nuts ā P# BB830MM & B830MM |
| ā¢1 x Line priming nipple ā P# BB18SN |
| ā¢12 x 200mm long cable ties ā P# CT200-12 |
| ā¢22m x 8mm OD nylon hose ā P# MET-G22 |
| ā¢9 x 1/8 BSP compression fittings ā P# BB188M |
| ā¢1 x Inline check valve ā P# HPS-CHV |

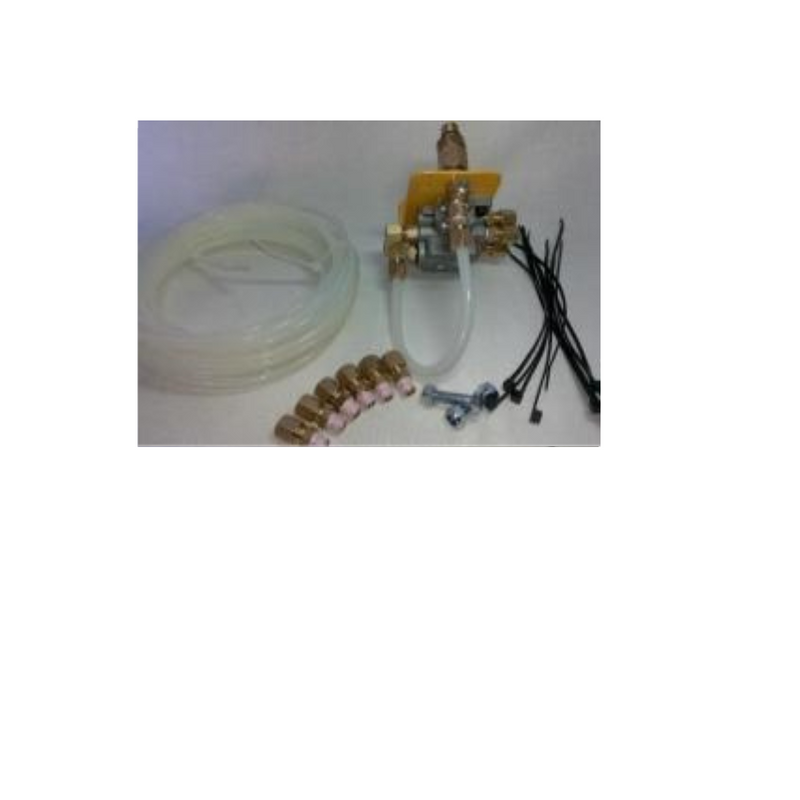

The 6-Outlet Distributor Kit (MA029/6) is a complete centralised lubrication system for machinery with six grease points, offering 30 metres of 8mm OD nylon hose and all the fittings, mounting hardware and cable ties needed for a professional installation. Built around a robust 6-outlet progressive distributor block with an inline check valve, this kit is well suited to larger agricultural, construction and industrial machinery requiring consistent, reliable grease distribution across six lubrication points.
Technical Specifications
| Order Code | MA029/6 |
| Number of Outlets | 6 |
| Distributor Block | 6-Outlet Progressive (P# ARU-6R) |
| Nylon Hose | 30m x 8mm OD (P# MET-G30) |
| Compression Fittings | 13 x 1/8 BSP (P# BB188M) |
| Cable Ties | 18 x 200mm (P# CT200-18) |
Kit Contents
| ā¢1 x 6-outlet progressive distributor block ā P# ARU-6R |
| ā¢1 x Remote powder coated safety yellow mounting bracket ā P# MA001/0 |
| ā¢2 x M8 mounting screws with nyloc nuts ā P# BB830MM & B830MM |
| ā¢1 x Line priming nipple ā P# BB18SN |
| ā¢18 x 200mm long cable ties ā P# CT200-18 |
| ā¢30m x 8mm OD nylon hose ā P# MET-G30 |
| ā¢13 x 1/8 BSP compression fittings ā P# BB188M |
| ā¢1 x Inline check valve ā P# HPS-CHV |

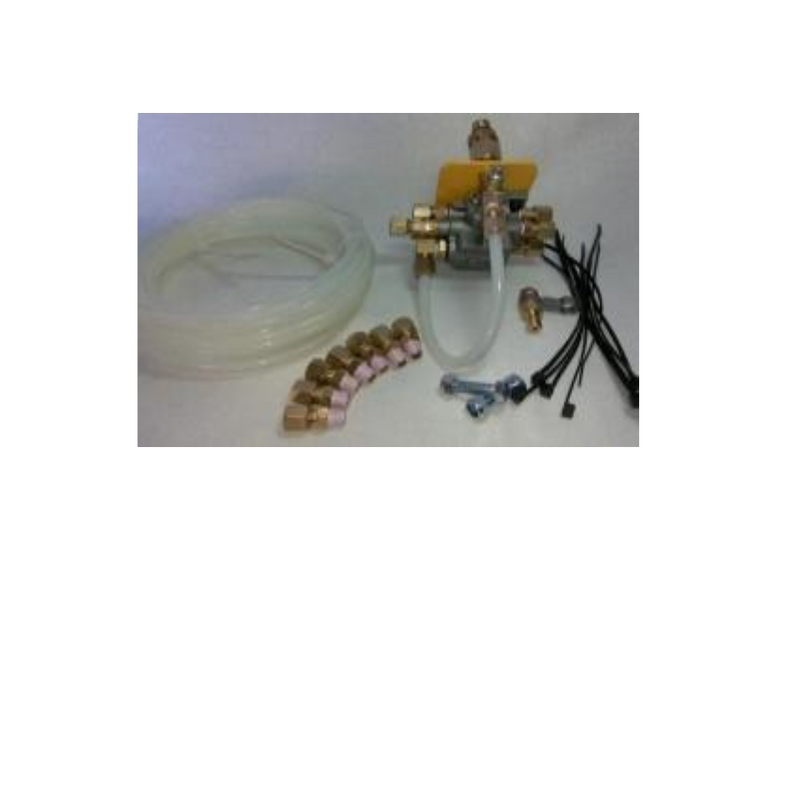

The 8-Outlet Distributor Kit (MA029/8) is a complete, ready-to-install centralised lubrication system for heavy machinery with eight grease points. Built around a robust 8-outlet progressive distributor block, this kit provides 35 metres of 8mm OD nylon hose, 16 quick connect fittings, an inline check valve and all mounting hardware required for a thorough, professional installation. Perfect for large construction, mining and forestry equipment where eight-point lubrication coverage is essential to machine reliability.
Technical Specifications
| Order Code | MA029/8 |
| Number of Outlets | 8 |
| Distributor Block | 8-Outlet Progressive (P# ARU-8R) |
| Nylon Hose | 35m x 8mm OD (P# MET-G35) |
| Quick Connect Fittings | 16 x 1/8 BSP (P# QCM9M) |
| Cable Ties | 24 x 200mm (P# CT200-24) |
Kit Contents
| ā¢1 x 8-outlet progressive distributor block ā P# ARU-8R |
| ā¢1 x Remote powder coated safety yellow mounting bracket ā P# MA001/0 |
| ā¢2 x M8 mounting screws with nyloc nuts ā P# BB830MM & B830MM |
| ā¢1 x Line priming nipple ā P# BB18SN |
| ā¢24 x 200mm long cable ties ā P# CT200-24 |
| ā¢35m x 8mm OD nylon hose ā P# MET-G35 |
| ā¢16 x 1/8 BSP Quick Connect Fittings ā P# QCM9M |
| ā¢1 x Inline check valve ā P# HPS-CHV |
Part of the Lube Control Grease Distribution Block Kits and Accessories range ā PRL-008-2011. All components are matched and tested for compatibility.
Ā
Disclaimer
Technical specifications may change. Please confirm with the manufacturer.
